Teddington Low Oil Pressure Warning Switch (1/8" NPT / 12PSI)
Teddington Low Oil Pressure Warning Switch (1/8" NPT / 12PSI)
Regular price
£90.37 GBP
Regular price
Sale price
£90.37 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

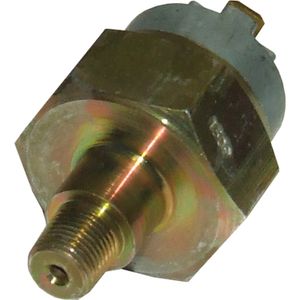

Teddington Low Oil Pressure Warning Switch (1/8" NPT / 12PSI)
Part No: TED-DCA-BG-083
This Teddington Low Oil pressure warning switch is designed to activate when pressure reaches around 12 psi. The pressure warning switch has a tolerance of +/- 0.14 bar, and a thread size of 1/8" NPT male. The switches default alarm range is set to 0.14 to 2 bar, and the maximum pressure overload rating is 12 bar.
| Height Description | Overall: 60mm |
| Width | Overall: 32m |
| Brand | Teddington |
| Thread Connection | NPT |
| Thread Fitting Size | 1/8" |
| Alarm Change for Reset | 0.5 bar nom |
| Default Alarm Range | 0.14 bar To 2.00 bar |
| Maximum Overload | 12 bar |
| Pressure Rating | Set at 12 PSI (0.82 Bar), Tolerance: +/- 2 PSI (0.14 Bar) |
| Thread Size | 1/8" NPT Male |
