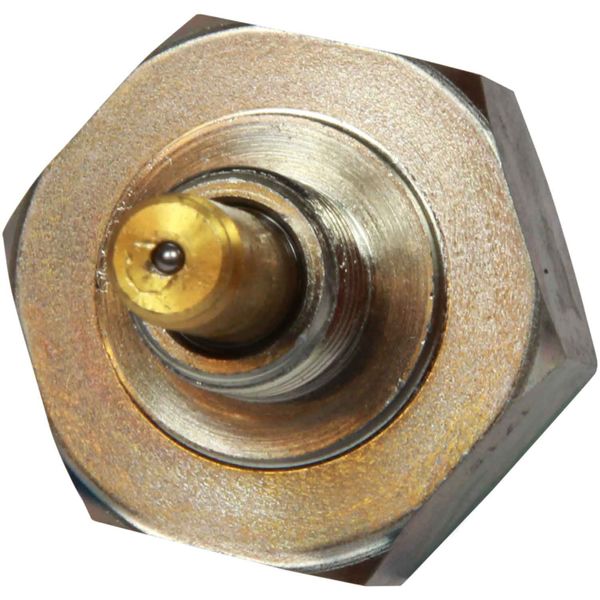

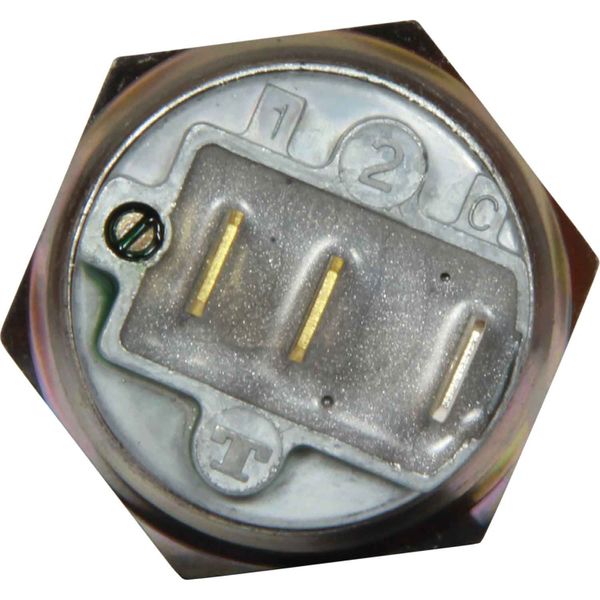

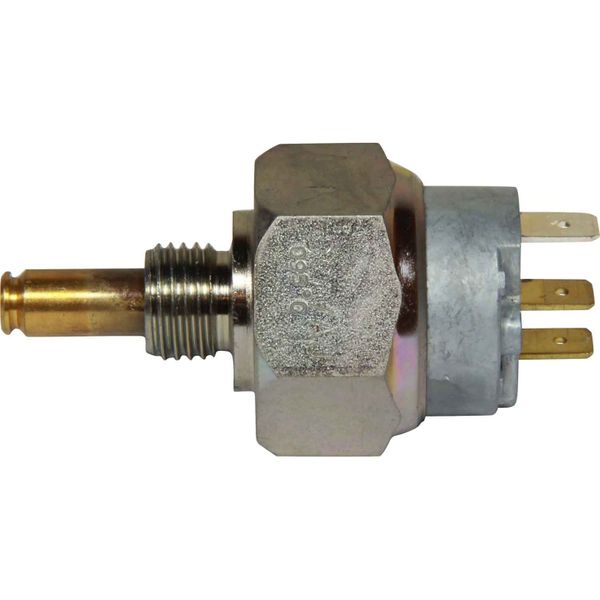

Teddington High Temperature Warning Switch (M14 x 1.5 / 95°C)
Part No: TED-DCA-AJ-095
This Teddington high temperature switch activates when the temperature reaches around 95°C. The high temperature switch features a M14 x 1.5 male thread and three 6.3mm x 0.08mm terminal tabs. The temperature switch has a 32mm A/F hexagonal width and a height of 69mm overall. The maximum overload for this switch is 25°C above the set point, which for this switch is 120°c.
Specifications:
Height Description
69mm overall
Temperature Range
95°C
Width
32mm A/F Hexagon
Brand
Teddington
Thread Connection
Metric
Thread Fitting Size
M14 x 1.5
Alarm Change for Reset
9°C nom
Connections Description
3 x 6.30mm x 0.08mm terminal tabs
Default Alarm Range
20°C To 140°C
Maximum Overload
25°C above set point
Thread Size
M14 x 1.5 Male
Tolerance
20°C To 109°C +/- 2°C, 110°C To 140°C +/- 3°C
