Teddington

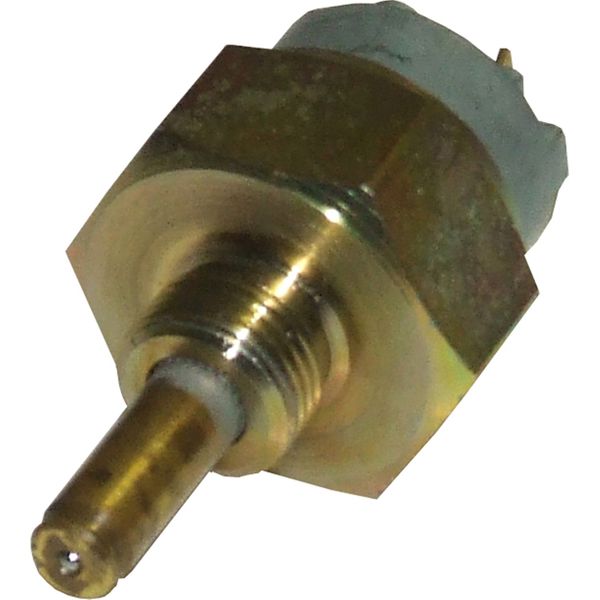

Teddington High Temperature Warning Switch (5/8" x 18 UNF / 97°C)
Teddington High Temperature Warning Switch (5/8" x 18 UNF / 97°C)
Regular price
£112.18 GBP
Regular price
£93.48 GBP
Sale price
£112.18 GBP
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Limited Stock - Call 01484 482269
Teddington High Temperature Warning Switch (5/8" x 18 UNF / 97°C)
Part No: TED-DCA-AN-097
The Teddington high temperature switch activates when temperature reaches approximately 97°C.
Specifications:
Height Description
69mm
Temperature Range
97°C
Width
32mm A/F Hexagon
Brand
Teddington
Thread Connection
UNF
Thread Fitting Size
5/8" x 18
Alarm Change for Reset
9°C nom
Connections Description
3 x 6.30mm x 0.08mm terminal tabs
Default Alarm Range
20°C To 140°C
Maximum Overload
25°C above set point
Thread Size
5/8" x 18 UNF Male
Tolerance
20°C To 109°C +/- 2°C, 110°C To 140°C +/- 3°C
Share
View full details
Teddington High Temperature Warning Switch (5/8" x 18 UNF / 97°C)
Part No: TED-DCA-AN-097
The Teddington high temperature switch activates when temperature reaches approximately 97°C.
Specifications:
| Height Description | 69mm |
| Temperature Range | 97°C |
| Width | 32mm A/F Hexagon |
| Brand | Teddington |
| Thread Connection | UNF |
| Thread Fitting Size | 5/8" x 18 |
| Alarm Change for Reset | 9°C nom |
| Connections Description | 3 x 6.30mm x 0.08mm terminal tabs |
| Default Alarm Range | 20°C To 140°C |
| Maximum Overload | 25°C above set point |
| Thread Size | 5/8" x 18 UNF Male |
| Tolerance | 20°C To 109°C +/- 2°C, 110°C To 140°C +/- 3°C |
