Teddington High Temperature Warning Switch (3/8"NPTF / 99°C)
Teddington High Temperature Warning Switch (3/8"NPTF / 99°C)
Regular price
£111.44 GBP
Regular price
£92.87 GBP
Sale price
£111.44 GBP
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Limited Stock - Call 01484 482269
Teddington High Temperature Warning Switch (3/8"NPTF / 99°C)
Part No: TED-DCA-AE-099

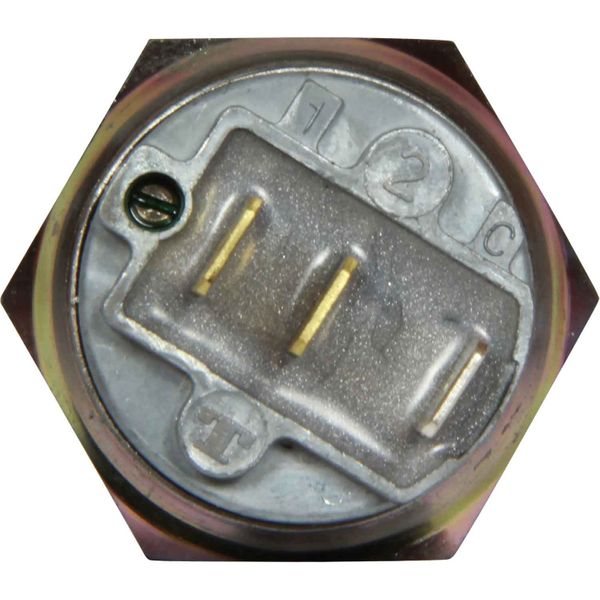

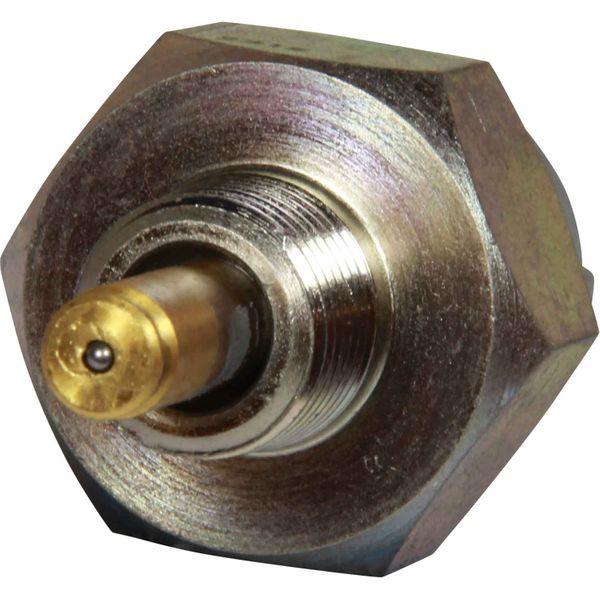

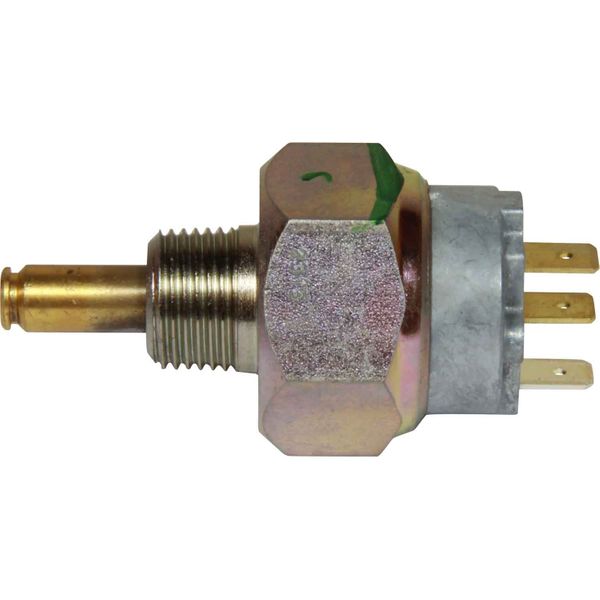

This Teddington high temperature switch activates when the temperature reaches around 99°C. The temperature switch features a 3/8" NPT Fine male thread and three 6.3mm x 0.08mm terminal tabs. This high temperature switch has a 32mm A/F hexagonal width and a height of 69mm overall. The maximum overload for this switch is 25°C above the set point, which for this switch is 124°c.
Specifications:
Height Description
69mm overall
Temperature Range
99°C
Width
32mm A/F Hexagon
Brand
Teddington
Thread Connection
NPT Fine
Thread Fitting Size
3/8"
Alarm Change for Reset
9°C nom
Connections Description
3 x 6.30mm x 0.08mm terminal tabs
Default Alarm Range
20°C To 140°C
Maximum Overload
25°C above set point
Thread Size
3/8" NPT Fine Male
Tolerance
20°C To 109°C +/- 2°C, 110°C To 140°C +/- 3°C
