Teddington High Temperature Warning Switch (3/8" BSP / 96°C)
Teddington High Temperature Warning Switch (3/8" BSP / 96°C)
Regular price
£96.23 GBP
Regular price
Sale price
£96.23 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Order Now: 0800 193 3368

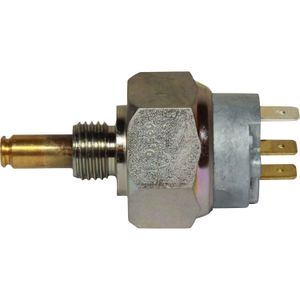

Teddington High Temperature Warning Switch (3/8" BSP / 96°C)
Part No: TED-DCA-AB-096
The Teddington high temperature switch activates when temperature reaches approximately 96°C.
| Height Description | 69mm overall |
| Temperature Range | 96°C |
| Width | 32mm A/F Hexagon |
| Brand | Teddington |
| Thread Connection | BSP |
| Thread Fitting Size | 3/8" |
| Alarm Change for Reset | 9°C nom |
| Connections Description | 3 x 6.30mm x 0.08mm terminal tabs |
| Default Alarm Range | 20°C To 140°C |
| Maximum Overload | 25°C above set point |
| Thread Size | 3/8" BSP Male |
| Tolerance | 20°C To 109°C +/- 2°C, 110°C To 140°C +/- 3°C |
