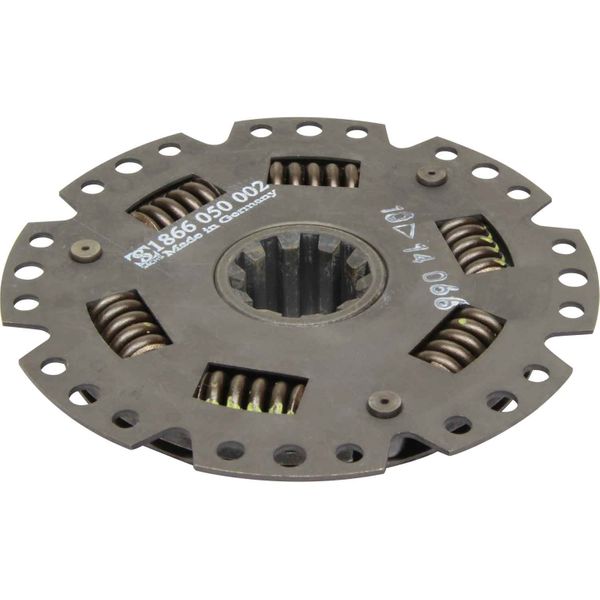

Spring Drive Plate For ZF Hurth (10 Teeth Spline / 121.5mm Diameter)
Part No: DF254750
ZF Hurth Spring type drive plate.
Also known as the gearbox damper plate, clutch drive plate or spring drive plate, the DF254750 ZF Hurth spring drive plate is a popular fitment on small boat engines with ZF Hurth gearboxes, Borgwarner 500 gearboxes, PRM 80 or 120 gearboxes and Technodrive TMC 30 & TMC 40 gearboxes. Can replace Borgwarner spring drive plate 23-01-650-002 and ZF Hurth drive plate 254710.
DF254750 Drive plate technical details:
- Overall diameter of drive plate back plate: 121.5mm (4.78")
- 10 teeth spline B10 x 23 x 29 DIN5464 (29.0mm diameter)
- Bolt hole details: 8 x 6.00mm (0.24") holes on 111.0mm (4.37") PCD and 16 x 5.1mm (0.20") holes on 111.0mm (4.37") PCD
- Overall drive plate thickness: 24.50mm (0.96")
- 6 springs
If you are unsure or need any assistance choosing your drive plate please contact our customer support department who will help you find the right parts for your application.
| Application | Borgwarner 500 gearboxes, PRM 80 or 120 gearboxes & Technodrive TMC 30 & TMC 40 gearboxes. |
| Type | 10 Tooth Plates |
| Brand | ZF Marine |
| Element | Spring |
| Bolt Hole PCD Description | 8 x 6.00mm (0.24") holes on 111.0mm (4.37") PCD & 16 x 5.1mm (0.20") holes on 111.0mm (4.37") PCD. |
| Diameter Description | OD: 121.5mm (4.78") |
| Gearbox Spline | 10 teeth B10 x 23 x 29 DIN 5464 (29mm diameter) |
| Number of Fixing Holes | 8 |
| Replaces | Borgwarner 23-01-650-002, ZF Hurth 254750 & DA301 Sachs Drive Plates |
| Thickness | Maximum: 24.50mm (0.96") |
