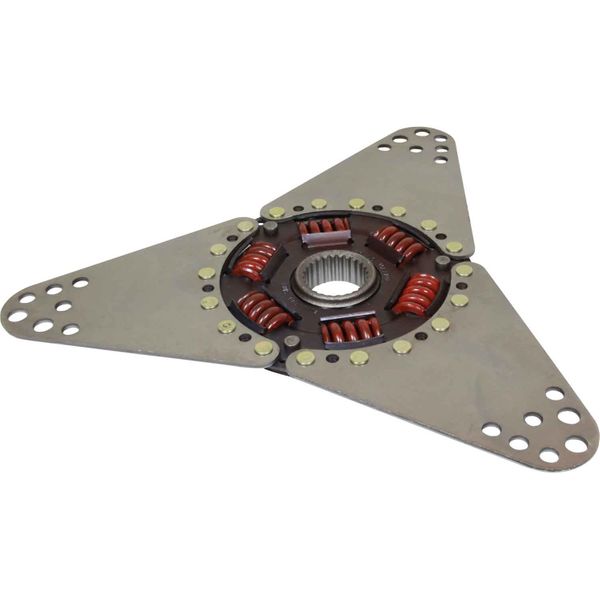

Spring Drive Plate For Borgwarner (26 Teeth Spline, Triangle)

Part No: DF-ASAP017

DriveForce Spring type drive plate.

Also known as the gearbox damper plate, clutch drive plate or spring drive plate, the ASAP017 DriveForce spring drive plate is a popular fitment on boat engines with either Borgwarner Velvet Drive gearboxes or TMP 1200 gearboxes. The distinctive triangle design of the drive plate make it easily identifiable. Can replace Borgwarner spring drive plate AS4-K2C (1004-650-006).

ASAP017 Drive plate technical details:

- 6.66" radius to tip of each triangle leg

- 3 legs (13.32" overall diameter)

- 26 teeth spline 20/40 DP (35.4mm diameter) Borgwarner Velvet Drive

- Bolt hole details: Each leg has 7 holes, one of each, 8.25mm (0.324") on 263.65mm (10.38" PCD), 8.25mm (0.324") on 270mm (10.63" PCD), 8.25mm (0.324") on 276.35mm (10.88" PCD), 8.25mm (0.324") on 289.05mm (11.38" PCD), 9.86mm (0.387") on 295.4mm (11.63" PCD), 8.25mm (0.324") on 314.45mm (12.38" PCD), 9.86mm (0.387") on 320.8mm (12.63" PCD)

- Overall drive plate thickness: 21.34mm (0.84")

- 6 springs

If you are unsure or need any assistance choosing your drive plate please contact our customer support department who will help you find the right parts for your application.
