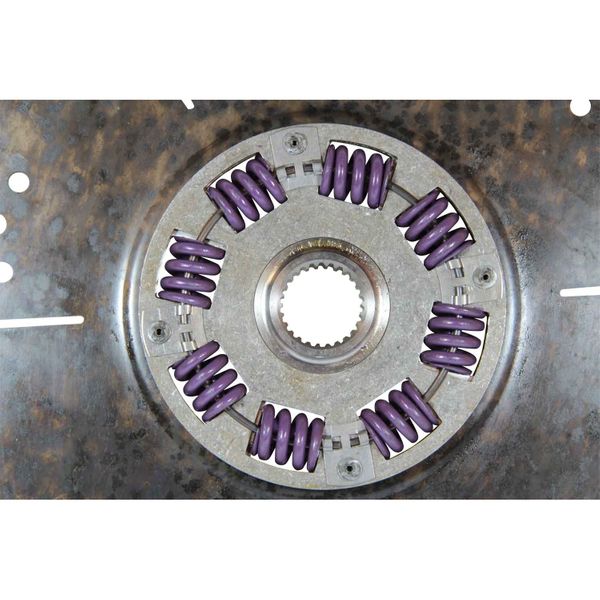

Spring Drive Plate For Borgwarner (26 Teeth Spline, 336.5mm Diameter)

Part No: DF-ASAP020

DriveForce Spring type Borgwarner drive plate.

Also known as the gearbox damper plate, clutch drive plate or spring drive plate, the ASAP020 DriveForce spring drive plate is a popular fitment on boat engines with either Borgwarner Velvet Drive gearboxes. Can replace Borgwarner spring drive plate AS7-K2C (1000-650-004).

ASAP020 Drive plate technical details:

- 336.55mm (13.25") overall black plate diameter.

- 26 teeth spline 20/40 DP (35.4mm diameter) for Borgwarner / Velvet Drive / TMP 1200

- Bolt hole details: There are 6 groups of holes, 7 holes on each segment. Each segment has one of each hole, 8.25mm (0.324") on 263.65mm (10.38" PCD), 8.25mm (0.324") on 270mm (10.63" PCD), 8.25mm (0.324") on 276.35mm (10.88" PCD), 8.25mm (0.324") on 289.05mm (11.38" PCD), 9.86mm (0.387") on 295.4mm (11.63" PCD), 8.25mm (0.324") on 314.45mm (12.38" PCD), 9.86mm (0.387") on 320.8mm (12.63" PCD)

- Overall drive plate thickness: 20.32mm (0.80")

- 8 springs

If you are unsure or need any assistance choosing your drive plate please contact our customer support department who will help you find the right parts for your application.
