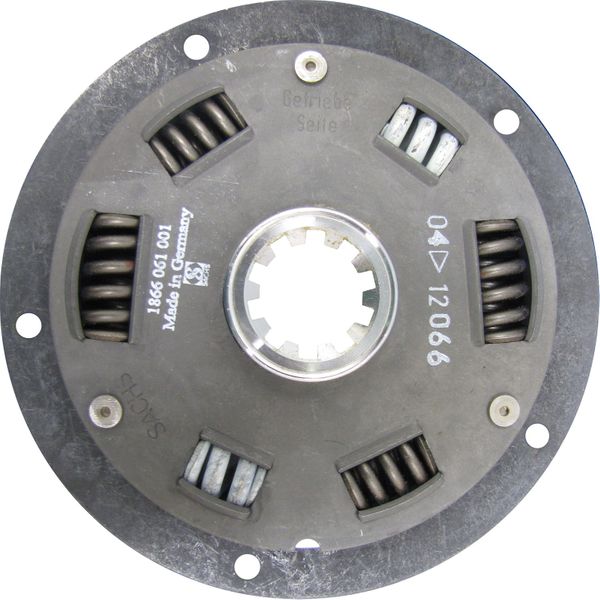

Spring Damper Drive Plate (ZF Hurth Gearbox Spline, 157mm Diameter)
Part No: DF288240
The ZF Hurth spring type damper drive plate is for ZF Hurth HBW type gearbox spline. This damper plate suits gearbox spline spec: 10 teeth, B10 x 23 x 29 DIN5464.
The spring damper drive plate bolts to the engine flywheel. The gearbox is directly driven via the splined centre while the springs provide dampening.
Typical applications include:
- Hurth HBW gearboxes HBW5, HBW10, HBW15, HBW35, HBW50, HBW100, HBW125 and HBW150
- ZF gearboxes ZF5, ZF10, ZF12 and ZF15
- Technodrive TMC30, TMC40, TMC50 and TMC60
- PRM Gearboxes PRM80, PRM120 and PRM150
- Borgwarner 500
If you are unsure or need any assistance choosing your drive plate please contact our customer support department who will help you find the right parts for your application.
| Application | Hurth HBW gearboxes HBW 5, HBW 10, HBW 15, HBW 35, HBW 50, HBW 100, HBW 125, HBW 150, ZF gearboxes ZF5, ZF10, ZF12, ZF15, Technodrive TMC30, TMC40, TMC50 & TMC60, PRM Gearboxes PRM80, PRM120, PRM150, Borgwarner 500. |
| Type | 10 Tooth Plates |
| Brand | ZF Marine |
| Element | Spring |
| Bolt Hole PCD Description | 142mm |
| Diameter Description | OD: 157mm |
| Gearbox Spline | 10 teeth B10 x 23 x 29 DIN 5464 (29mm diameter) |
| Number of Fixing Holes | 5 |
| Replaces | Hurth 288240 |
