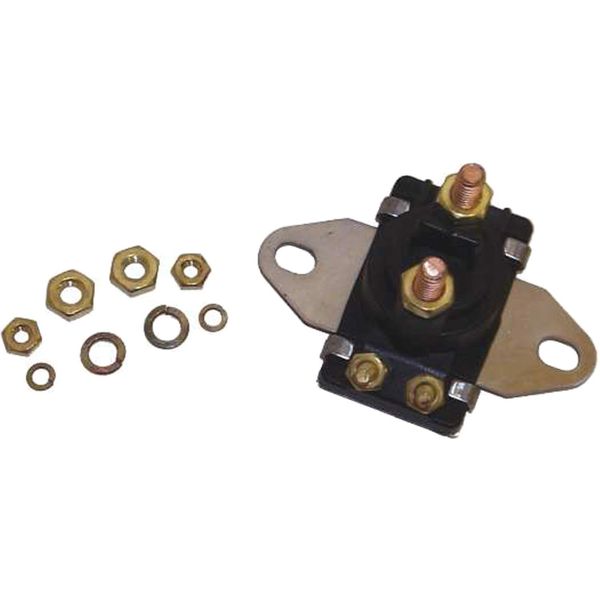

Sierra 18-5816 Starter Solenoid for Mercruiser Outboard Engines



Part No: SM-18-5816

Sierra Marine starter solenoid 18-5816 with flat bracket will replace the following solenoids:

- Sierra Marine 18-5816D

- Mercury/Mariner 89-96054, 89-96054T & 89-91975

- Mallory Marine 9-15113

- Arco SW054

- Protorque PH375-0038

The starter solenoid is suitable for the following engines:

Mercruiser:

- 185 GM V-6 1983-1984 (6330183 - 6919655) & 1985-1987 (A331455 - B527954)

- 200 GM V-8 1985-1986 (6218462 - B525981)

- 200 (5.0L) GM V-8 1987-1995 (B525982 - F600999)

- 205 GM V-6 1985-1991 (A331455 - D714369)

- 228 GM V-8 1977-1986 (4765100 - B525981)

- 230 GM V-8 1977-1986 (4765100 - B525981)

- 260 GM V-8 1982-1986 (6218462 - B525981)

- 330 GM V-8 1982-1987 (6083145 - B816540)

- 420 GM V-8 1987-1989 (A398941 - B622418)

- 425 GM V-8 1990-1992 (A398941 - D937011)

- 465 GM V-8 1990-1994 (C849992 - F213244)

- 575 GM V-8 1986-1992 (A677429 - D763716)

- 898 GM V-8 1983-1984 (621462 - B525981)

- 175 (4.3L) GM V-6 1987-1992 (B527955 - D714106)

- 230 (5.0L) MIE GM V-8 1987-1988 (5907058 - B788151)

- 230 (5.0LX) GM V-8 1987-1995 (B525982 - F600999) (flat bracket)

- 260 (5.7L) GM V-8 1987-1995 (B525982 - F600999) (flat bracket)

- 260 (5.7L) MIE GM V-8 1987-1995 (5907058 - F746099)

- 340/7.4L MIE with Borgwarner GM V-8 1981-1992 (5889914 - D715493)

- 300 MR & TR Tempest GM V-8 1985-1986 (6668677 - B430367)

- 320 EFI GM V-8 1987-1989 (A543604 - C622418)

- 350 Mag. EFI Ski GM V-8 1994-1997 (F215561 - K999999)

- 350 Mag. MPI Ski GM V-8 1995-1996 (F350583 - F799999)

- 350 Mag. Ski GM V-8 1991-1996 (D505450 - K040399) (flat bracket)

- 350 Mag. Alpha GM V-8 1986-1995 (A635178 - F600999)

- 350 Mag. EFI & MPI GM V-8 1995-1996 (F415189 - K001500) & 1997 onwards (K001501 & Up)

- 350 Mag. MPI MIE GM V-8 1998 onwards (L002008 & Up)

- 350 Mag. MPI GM V-8 2000-2001 (L619000 - M299999)

- 350 Mag. MPI MIE Horizon GM V-8 1999-2001 (L304700 - L304700)

- Black Scorpion GM V-8 1996 onwards (F800000 & Up)

- 370 TRS GM V-8 1985-1987 (6721528 - B714586)

- 454 EFI Ski GM V-8 1995-1996 (F215800 - F820099)

- 454 Mag. GM V-8 1986-1994 (A631894 - F304999) (Thunderbolt IV)

- 454 Mag. MPI GM V-8 1994-1997 (F115700 - K999999) & 1998 onwards (L010029 & Up) (Ignition module mounted on elbow)

- 454 Mag. MPI MIE GM V-8 1996-1997 (F820100 - K999999) (Ignition module mounted on distributor) & V-8 1998 onwards (L002200 & Up)

- 5.7L EFI GM V-8 1995-1997 (F225560 - K999999) & 1998 onwards (L010035 & Up)

- 5.7L EFI MIE GM V-8 1997 (K040300 - K999999)

- 5.7L MIE GM V-8 1994-1996 (F622151 - K040306)

- 5.7L Ski GM V-8 1985-1995 (A338533 - F775199)

- 500 Bulldog GM V-8 1990-1996 (C577254 & Up) (Firepower ignition)

- 502 Mag. Bravo GM V-8 1990-1993 (C878221 - F114528)

- 502 Mag. MPI GM V-8 1993-1997 (D840650 - K999999) & 1998 onwards (L017000 & Up)

- 525 SC GM V-8 1991-1993 (D456000 - D763831)

- 600 SC GM V-8 1991-1996 (D456489 - F877642) (Firepower ignition)

- MX 6.2L Black Scorpion Ski GM V-8 2001 (L670015 - L678036)

- 7.4L GM V-8 1988-1991 (B771113 - D603117) & 1988-1996 (B771113 - F800699)

- 7.4L MIE GM V-8 1989-1996 (C391564 - F820141)

- 7.4L EFI & MPI MIE GM V-8 1995-1997 (F563052 - K999999)

- 7.4LX EFI & MPI GM V-8 1996-1997 (F602010 - K999999)

- 8.2L MIE GM V-8 1990-1996 (C878221 - F819619)

- 8.2L MPI MIE GM V-8 1996-1997 (F819620 - K999999) & 1998 onwards (L002450 & Up)

Mercury:

- 6 (A197112 - OD280999)

- 8 (A197112 - OD280999)

- 9.9 (A197112 - OD280999)

- 15 (B292414 - Up)

- 18 (5837437 - Up)

- 20 (6443973 - Up)

- 25 (5705532 - G044026)

- 40 (G053314 - Up)

- 40 4-Cylinder (with solenoids) (C159200 - Up)

- 40 4-Cylinder (with relays) (C159200 - Up)

- 45 JET (with flush mount solenoid) (D000750 - G290584)

- 50 3-Cylinder (6428681 - B122929) & (D000750 - G290584)

- 55 3-Cylinder (D000750 - G290584)

- 60 3-Cylinder (6428681 - B122929) & (D000750 - G290584)

- 70 3-Cylinder 6104370 - 6428680)

- 75 4-Cylinder (6432901 - Up)

- 80 4-Cylinder (6030904 - 6432900)

- 90 (6026609 - 6436122) & (6436123 - Up)

- 115 (6051526 - 6436122) & (6436123 - Up)

- V150 (6042946 - A904645)

- V175 (6618751 - C239552)

- V200 (6073192 - C100860)



Brand	Sierra
Suitable For	Mercruiser|Mercury
