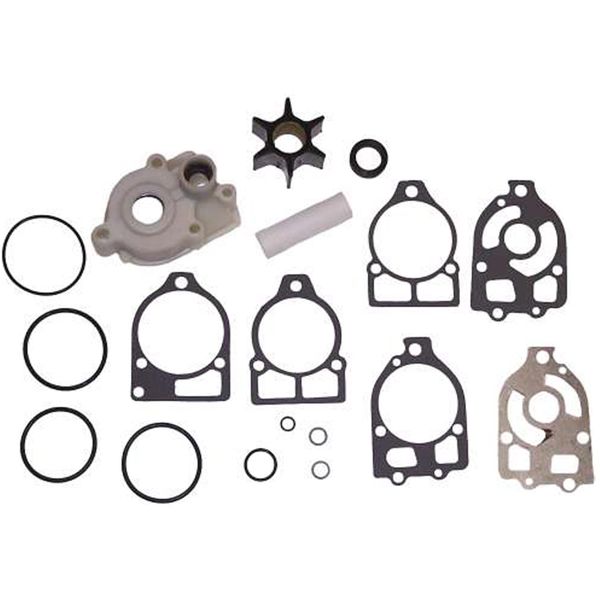

Sierra 18-3517 Water Pump Overhaul Kit for Mercruiser and Mercury

Part No: SM-18-3517

Sierra Marine water pump repair kit 18-3517 (without base) replaces the following pump service kits:

- Mercury 46-96148A5, 46-60367A1, 46-96148A8 & 46-96148Q8, 32437A1, 32437A3, 37433A1, 42579A4, 44292A4, 48747A3, 57234A3, 58618A4, 60367A4, 64141A11, 69222A3, 73802A3, 73804A3, 78400A2, 96148B5 & 96148B8

- Mallory Marine 9-48311

The pump upper service kit is suitable for the following engines:

Mercruiser:

- #1 Units with Plastic Flush Screw-in Gear Housing (2495186 - 2763441)

- #1 Units (except Mercruiser Alpha) without Flush Screw-in Gear Housing (2763442 - 6854392)

- Mercruiser Alpha I (6854393 - 0D594568)

Mercury:

- 75 4-cylinder (6432901 & Up)

- 80 4-cylinder (4831999 - 6432900)

- 85 4-cylinder (4590512 & Up)

- 90 6-cylinder (4845301 & Up)

- 105 Jet (0D182000 & UP)

- 115 6-cylinder (4694237 & Up)

- V 135 (904646 & Up)

- 140 (4865678 & Up)

- 140 Jet (0D082000 & Up)

- 150 (4121435 - 4868647)

- V 150 (A904645 & BELOW, A904646 & UP)

- V 175 (6618750 & BELOW, 6618751 & UP)

- V 200 (6625220 & BELOW, 6625221 & UP)

- V 220 (All)

- V 225 (All)

- XR4/Magnum II (All)

Sierra 18-3517 Water Pump Kit contains the following spare parts:

18-3109 Water Tube (23-29804)

18-3017 Impeller (47-89984)

18-3116 Housing (46-96148A1)

18-2919 Water Pump Gasket (27-42631-1)

18-3110 Grommet (26-38970)

2x 18-2945 Drain Gasket (26-20260, 12-19183)

18-2826 Water Pump Base to Gear Housing Gasket (27-85610-1)

18-2914 Water Pump Gasket (27-85608-1)

18-2915 Water Pump Gasket (27-85609-1)

18-2944 Seal Ring (26-45577)

18-3117 Plate (32435)

18-7158 O-Ring (25-30613)

18-7162 O-Ring (25-33145)

18-7173 O-Ring (25-30224)

18-7176 O-Ring (25-90011)

18-2801 Water Pump Gasket (27-32438)

18-7196 O-Ring (25-38099)

18-7426 O-Ring (35-30271)
