SHURflo

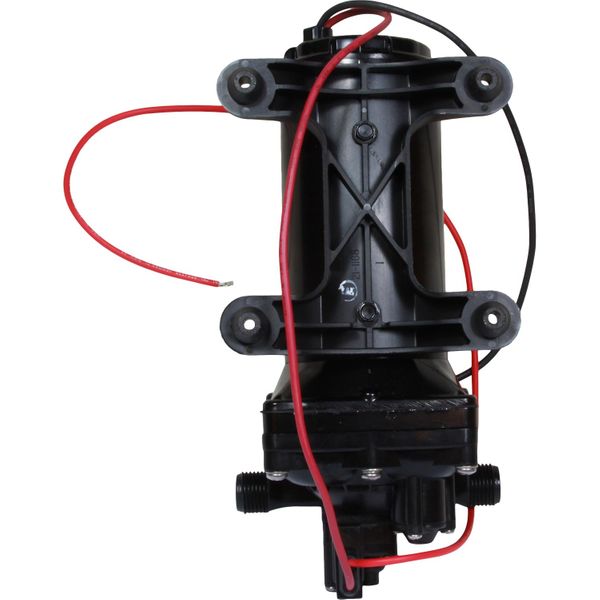

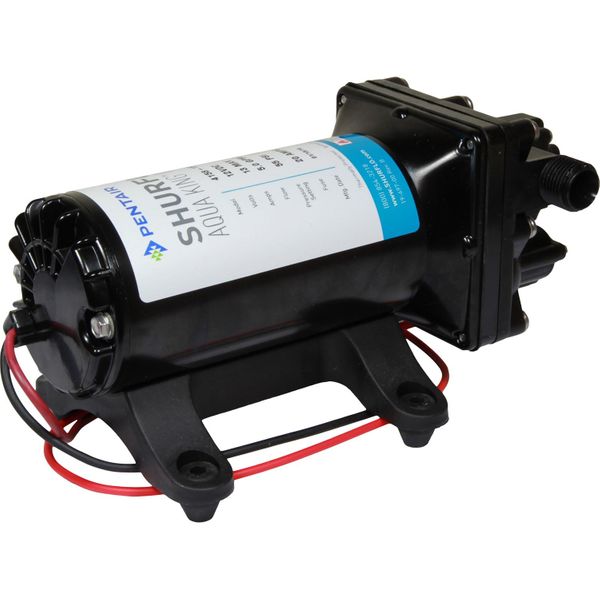

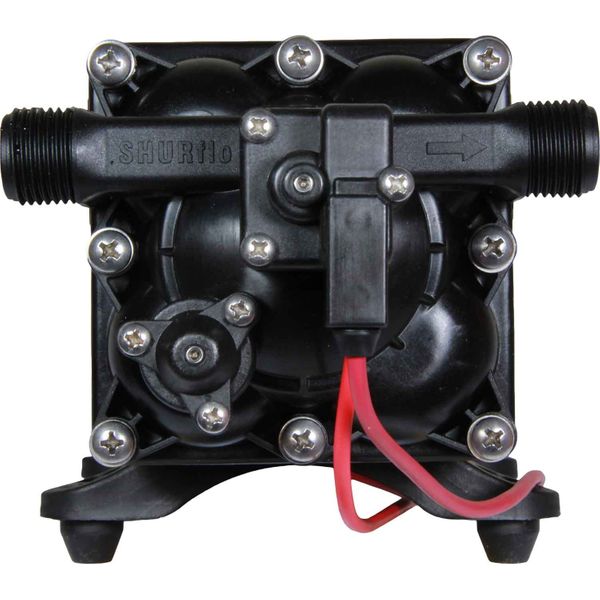

SHURflo Aqua King II Supreme 5.0 Fresh Water Pump (12V / 55 PSI)

SHURflo Aqua King II Supreme 5.0 Fresh Water Pump (12V / 55 PSI)

Regular price £183.36 GBP
Regular price Sale price £183.36 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SHURflo Aqua King II Supreme 5.0 Fresh Water Pump (12V / 55 PSI)



 Part No: 509632



The SHURflo new Aqua King II Supreme 4158 series fresh water pump design was created with unique over-moulded single-piece diaphragm and internal bypass, assuring long life and top performance in all plumbing systems.

The SHURflo Aqua King II is designed as the next legendary fresh water pump to exceed the expectations of customers. The 4158 series boat water pumps are constructed for high flow demand, smooth flow and no rapid cycling using the latest reaction technology. The automatic demand fresh water pumps are also quiet, thermally protected and can run dry without damage.

SHURflo has built their quality reputation on the reliability and dependability of every pump they build, and with the upgraded Aqua King they have built a pump with the same footprint as the old model to allow for easy retrofitting.

SHURflo Fresh Water Pump 4158-153-E75 Features & Benefits

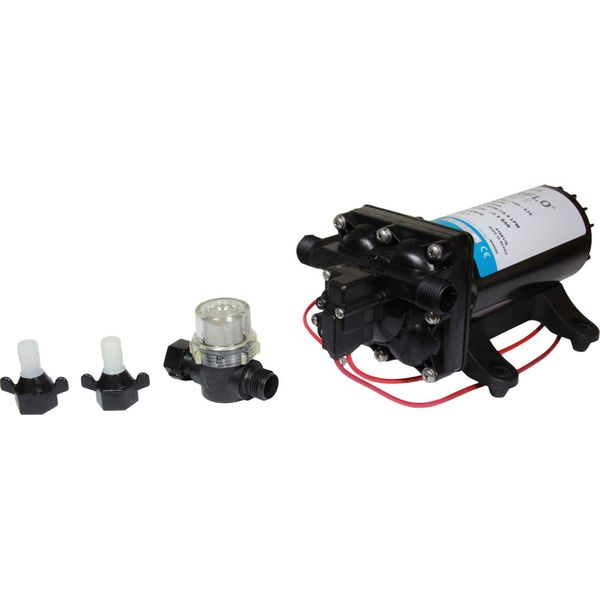

- Supplied complete with strainer and fittings.

- Co-moulded diaphragm.

- 4 independent chambers.

- Adjustable switch and bypass.

- Multi-fixture, up to 4 fixtures.

- Self-priming up to 6 feet.

- Run dry capability.

- Sealed switch.

- Sealed motor.

- Corrosion resistant electro coated motor.

- Thermally protected.

- Ignition protected, CE.

- 3 Year warranty.

Approvals Ignition Protected 8846, CE Listed
Cut Out Pressure Description 55 PSI / 3.8 Bar, Bypass Shut-Off Pressure: 65 PSI / 4.5 Bar
Flow Rate Description 18.9 LPM (5 US GPM)
Fuse 15A
Height Description 120mm (4.7")
Length 254mm (10")
Series Aqua King II Supreme
Supplied With Strainer
Type Fresh Water Pumps
Voltage Description 12V DC
Width 127mm (5")
Brand SHURflo
Accumulator Recommended No
Warranty 3 Years
Hose Size 13mm / 1/2"
Model 4158-153
Replaces 509532 Shurflo Smart Sensor 5.7 Fresh Water Pump. Closest Alternative for 509452 Flojet General Purpose & Jabsco 52600-0292 PAR-Max 7 Pumps
Self Primes up to 1.82 Metres (6 Feet)
Inlet Outlet Fittings for 13mm (1/2") ID hose
Amps Description 13A Maximum
