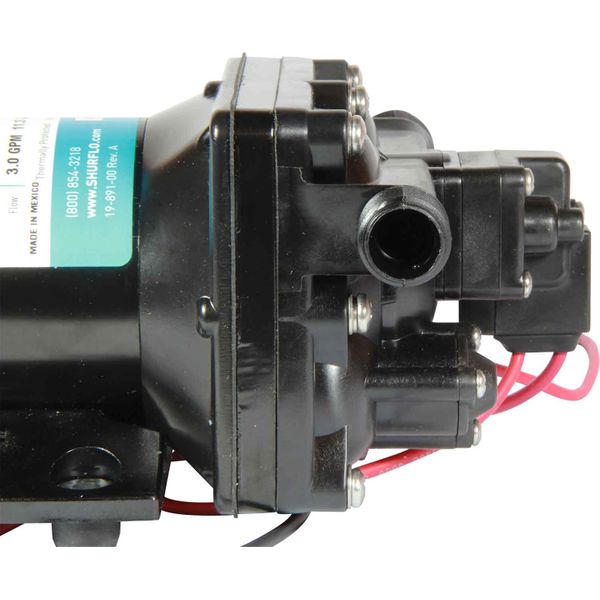

SHURflo Aqua King II Standard 3.0 Fresh Water Pump (12V / 45 PSI)
SHURflo Aqua King II Standard 3.0 Fresh Water Pump (12V / 45 PSI)
Couldn't load pickup availability
SHURflo Aqua King II Standard 3.0 Fresh Water Pump (12V / 45 PSI)
Part No: 509518
The SHURflo Aqua King II Standard 4139 series marine water pump design was created with unique over-moulded single-piece diaphragm and internal bypass, assuring long life and top performance in all plumbing systems.
The automatic demand fresh water pumps are also quiet, thermally protected and can run dry without damage.
SHURflo has built their quality reputation on the reliability and dependability of every pump they build, and with the upgraded Aqua King Standard they have built a fresh water pump with the same footprint as the old model to allow for easy retrofitting.
SHURflo Boat Water Pump Features & Benefits
- 3901 Replacement
- Sealed Switch
- Sealed Motor
- Corrosion Resistant Electro Coated Motor
- 4 Independent Chambers
- Built-In Check Valve
- Co-Moulded Diaphragm
- Adjustable Switch
- Dry Run Capability
- Thermally Protected
| Approvals | Ignition Protection 8846, CE, IMCI Certified |
| Cut Out Pressure Description | 45 PSI / 3.1 Bar |
| Flow Rate Description | 11.35 LPM (3.0 GPM) |
| Fuse | 7.5A Recommended |
| Height Description | 104mm (4.1") |
| Length | 208mm (8.2") |
| Material | Polypro Housings, EPDM Valves / Seals, Santoprene Draphragm, Stainless Steel Hardware |
| Series | Aqua King II Standard |
| Type | Fresh Water Pumps |
| Voltage Description | 12V DC |
| Width | 124mm (4.9") |
| Brand | SHURflo |
| Warranty | 3 Years |
| Hose Size | 13mm / 1/2" |
| Model | 4139-111 |
| Replaces | 509508 - Aqua King Standard 3.0 Pressure Pump. Closest alternative for pressure pumps: 509672 - Shurflo 2854, 509322 Floking 3000 series. |
| Self Primes up to | 1.82 Metres (6 Feet) |
| Inlet Outlet | 1/2"-14 NPSM Male (13mm) |
| Amps Description | Maximum: 6.5A |
