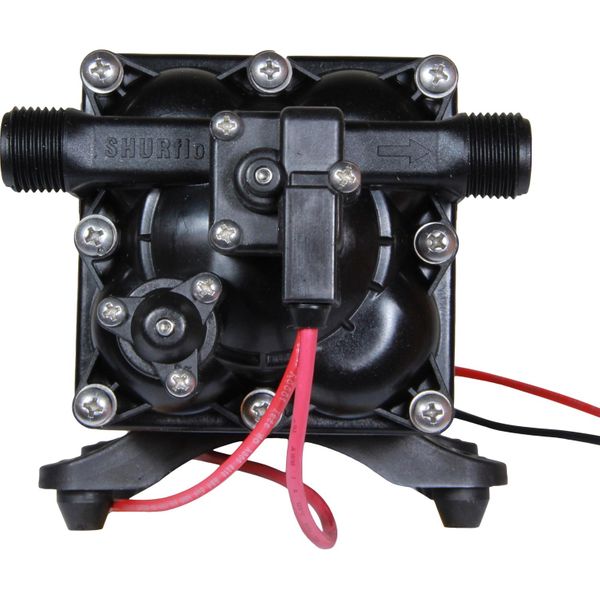

SHURflo Aqua King II Premium 4.0 Fresh Water Pump (12V / 15.1 LPM)
SHURflo Aqua King II Premium 4.0 Fresh Water Pump (12V / 15.1 LPM)
Couldn't load pickup availability
SHURflo Aqua King II Premium 4.0 Fresh Water Pump (12V / 15.1 LPM)
Part No: 509621
The SHURflo Aqua King II Premium 4149 series fresh water pump design was created with unique over-moulded single-piece diaphragm and internal bypass, assuring long life and top performance in all plumbing systems.
The SHURflo Aqua King II is designed as the next legendary fresh water pump to exceed the expectations of customers. SHURflo boat water pumps are constructed for high flow demand, smooth flow and no rapid cycling using the latest reaction technology. The automatic demand fresh water pumps are also quiet, thermally protected and can run dry without damage.
SHURflo has built their quality reputation on the reliability and dependability of every pump they build, and with the upgraded Aqua King they have built a pump with the same footprint as the old model to allow for easy retrofitting.
SHURflo Marine Fresh Water Pump Features & Benefits
- Co-moulded diaphragm
- 4 independent chambers
- Adjustable switch and bypass
- Multi-fixture, up to 4 fixtures
- Run dry capability
- Sealed switch
- Sealed motor
- Corrosion resistant electro coated motor
- Thermally protected
Approvals | Ignition Protected 8846, CE Listed |
Consumption | 10a |
Cut Out Pressure Description | 40 PSI / 2.8 Bar |
Flow Rate Description | 15.1 LPM (4 US GPM) |
Fuse | 15A |
Height Description | 122mm (4.8") |
Length | 254mm (10") |
Series | Aqua King II Premium |
Supplied With | Strainer & Fittings |
Type | Fresh Water Pumps |
Voltage Description | 12V DC |
Width | 127mm (5") |
Brand | SHURflo |
Accumulator Recommended | No |
Warranty | 3 Years |
Connections Description | 13mm (1/2") ID Hose or 15mm push fit |
Hose Size | 13mm / 1/2" |
Maximum Recommended Head | 1.8 Metres |
Model | 4149-153 |
Pressure Rating | Bypass shut-off pressure: 50 PSI (3.5 Bar) |
Replaces | Pressure Pumps: 509534 Shurflo Smart Sensor 5.7, 509510 SHURflo Aqua King Premium 4.0 4901-4215 and 509332 Floking 3000 series pump |
Self Primes up to | 1.82 Metres (6 Feet) |
Inlet Outlet | Fittings for 13mm (1/2") ID hose |
Amps Description | 10A |
