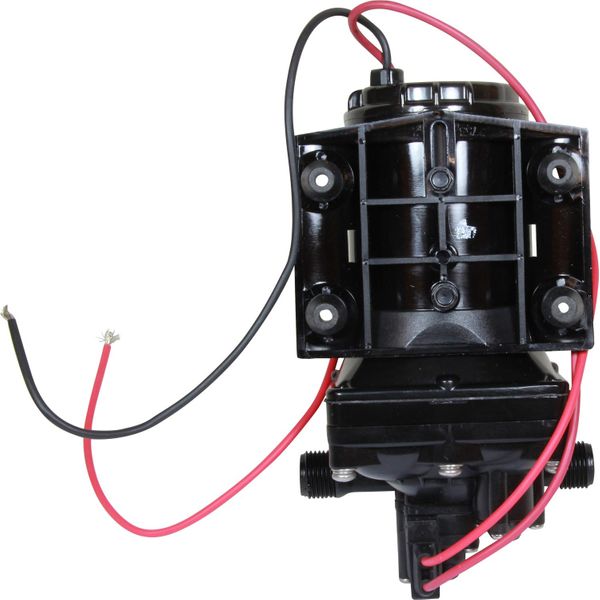

SHURflo Aqua King II Junior Fresh Water Pump (12V / 7.6 LPM / 30 PSI)



Part No: 509514



The SHURflo Aqua King II Junior 4128 series fresh water pump design was created with unique over-moulded single-piece diaphragm and internal bypass, assuring long life and top performance in all plumbing systems.

The automatic demand fresh water pumps are also quiet, thermally protected and can run dry without damage.

SHURflo has built their quality reputation on the reliability and dependability of every pump they build, and with the upgraded Aqua King Junior they have built a pump with the same footprint as the old model to allow for easy retrofitting.

SHURflo Fresh Water Pump 4128-110-E04 Features & Benefits

- 2901 Replacement

- Sealed Switch

- Sealed Motor

- Corrosion Resistant Electro Coated Motor

- 4 Independent Chambers

- Built-In Check Valve

- Co-Moulded Diaphragm

- Adjustable Switch

- Self-Priming up to 6 Feet

- Dry Run Capability

- Thermally Protected

- Ignition Protected, CE

Approvals	Ignition Protection 8846, CE, IMCI Certified
Cut Out Pressure Description	30 PSI / 2 Bar
Flow Rate Description	7.6 LPM (2.0 GPM)
Fuse	5A Recommended
Height Description	104mm (4.1")
Length	208mm (8.2")
Material	Polypro Housings, EPDM Valves / Seals, Santoprene Draphragm, Stainless Steel Hardware
Series	SHURflo Aqua King II Junior
Type	Fresh Water Pumps
Voltage Description	12V DC
Width	124mm (4.9")
Brand	SHURflo
Warranty	3 Years
Hose Size	13mm / 1/2"
Model	4128-110
Replaces	Shurflo Aqua King Junior Pump 509504
Self Primes up to	1.82 Metres (6 Feet)
Inlet Outlet	1/2"-14 NPSM Male (13mm)
Amps Description	Maximum: 3.5A
