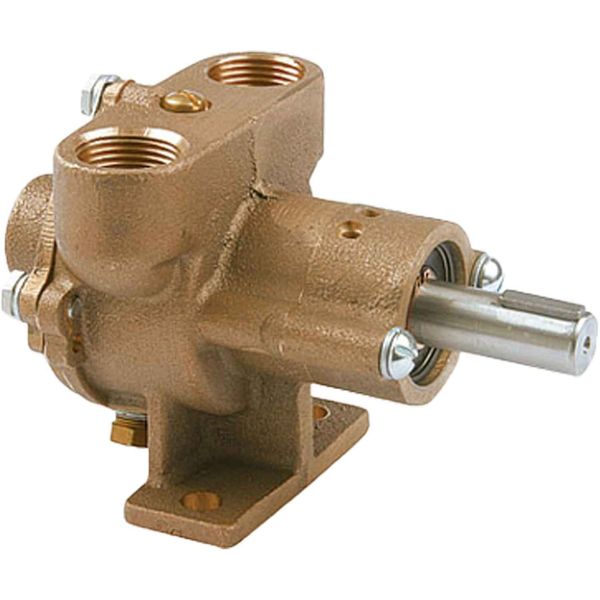

Sherwood R50G Engine Cooling Pump (3/4" Ports / Foot Mount)
Sherwood R50G Engine Cooling Pump (3/4" Ports / Foot Mount)
Sherwood R50G Engine Cooling Pump (3/4" Ports / Foot Mount)
Part No: SWR50G
This is a genuine Sherwood R50G foot mounted boat engine cooling pump, using raw water intake (river water or sea water) to cool the engine. The Sherwood raw water pump will replace Sherwood F15 and R10870G pumps and is typically fitted to Crusader Interceptor engines and Universal Medalist Light Plants engines. The Sherwood R50G features a bronze pump body and is supplied complete with a 12 vane through key drive flexible neoprene impeller.
To ensure that your boat engine cooling pump performs as required, regular preventative maintenance and inspection should be carried out. The Sherwood engine cooling pump impeller should be replaced every 3 - 12 months depending on application.
The number one reason for premature engine wear is overheating. To maintain engine performance, insist upon genuine Sherwood impeller pumps, impellers and service kits.
The raw water engine cooling pump is the heart of the marine engine, supplying a continuous flow of raw water to maintain temperatures consistent with the demanding engine performance. Over the years, Sherwood raw water pumps have developed a reputation of excellence in quality; and today are chosen for their performance and dependability by the most prestigious marine engine manufacturers.
Sherwood pumps are one of the largest suppliers of flexible rubber impeller cooling pumps for marine engines in the USA. Sherwood pumps can be found fitted on some of the most well known engine brands in both pleasure and commercial boats.
Flow Rate Description | 60.5 LPM (16 GPM) @ 3000 RPM Maximum |
Height Description | 95.3mm (3-3/4") |
Length | 150mm (5-29/32") |
Type | Engine Cooling Pumps |
Width | 98.4mm (3-7/8") |
Brand | Sherwood |
Diameter Description | Fixing Holes: 10.3mm (13/32") |
Dimensions | Distance Between Fixing Hole Centres: 57.2mm (2-1/4") |
Drive Type Description | Pulley Driven |
Impeller Fitted | 09959K |
Model | R50G |
Mounting Description | Foot Mount |
Repair Kit | Minor: 10997, Major: 12937 |
Replaces | Sherwood F15 & R10870G Pumps |
Inlet Outlet | 3/4" -14 NPT |
