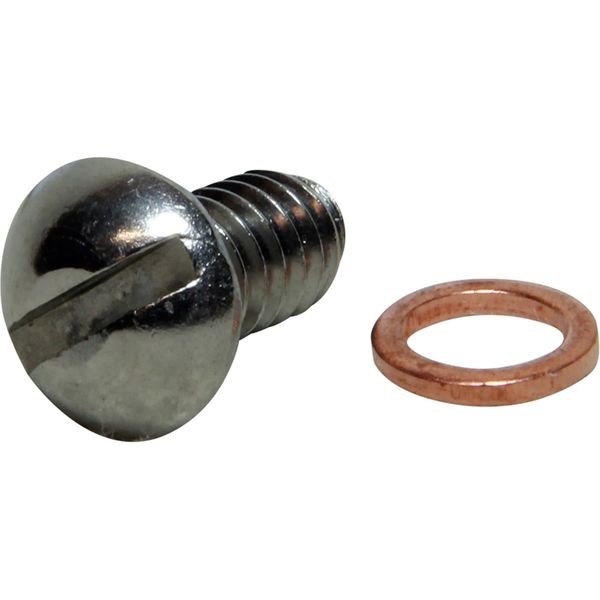

Sherwood Pump Cam Plate Screw and Washer 10515

Part No: SW10515

The replacement Sherwood 10515 cam plate screw fits the following Sherwood pump models:

- D05, D55, D60, D65, D75, E35, F85, F95, G1, G2, G3, G4, G5, G7, G7B, G8, G15, G21, G22, G26, G30-2, G30-2B, G45-1, G45-2, G46, G50, G55-2, G56, G65, G85, G95-1, G151, G155, G157, G1004, G1005, G1006, G1006-01, G1008, G1008-01, G1009, G1009-01, G1505, G1505-01, G1508, G1508-01, G9901, G9902, G9903, GC1, GC1-01, GC4, GC5, GC5-01, H5, H10, H85, J70, K75, K75B, K90, L10, L10B, L80, M70, M71, M71-01, N10460, N10470, P101, P102, P105, P105-01, P109, P109-01, P110, P151, P171, P173, P176, P176X, P176-02, P1012-01, P1014, P1015, P1015-01, P1505, P1505-01, R102, R991, RPBC and S11095G.

This cam plate screw is typically found in Sherwood pumps fitted to the following engines:

- Sherwood B04, E35, H10, P101, P102, Q10755G, Q10765G, Q10775G, R101, S11040G and S11085G pumps on Crusader 220, 270, 300, 350, Chevy V6 and Chevy LH Rotation engines (Crusader 40050, 40070, 97179, 97512, 1000269 and 1001984).

- Sherwood B06, G65, H5 and RPBC pumps on Perkins 40-108, 4.154 and 6.354 diesel engines (Perkins NA001175, NA003335 and NA005576).

- Sherwood C-03, D55, D60, D65, D75, G5, G5-1, G7, G7B, G50, F10, N10390G, P10550G, Q10855G and R10935G pumps on Chrysler Marine 318, 360, LM318-X, LM340-X, M225X, M273X, LM318X, M383X, M413E and M440X engines (Chrysler Marine 2846428, 2847629, 2847630, 2847631, 2847632, 3675763, 3745511, 3619212, 3619030, 4142878, E-7584-M, E-7592-M, E-8542-M and E-9327-M).

- Sherwood D05, G15, G30-2, G30-2B, G45-1 and S11095G pumps on Chris Craft 307-327Q, 327F, 350, 427 and 454 engines (Chris Craft 16.80-10010, 16.80-18340, 16.80-18344, 16.80-18346 and 16.80-18347).

- Sherwood F75 and G85 pumps on Escort 302 and 351 engines (Escort D5MZ8502).

- Sherwood F85-01 and F95 pumps on Westerbeke Pilot 10-20 and 4 / 6 cylinder diesel engines (Westerbeke 16423 and 16432).

- Sherwood G20, G21-01, G22-01, G26-01 and G55-2 pumps on Pleasurecraft Marine 302, 351, 7.3L diesel, Chevy 454 and Mitsubishi 4 cylinder engines.

- Sherwood G30-2, G85, G9901, G9902, G9903 and P105 pumps on some Volvo Penta engines and Volvo 4, 6 to 8 cylinder engines (3852398, 3852399 and 3855079).

- Sherwood G45-2, G46, G9901, G9902, G9903 and H-85 pumps on OMC inboard, V8 Chevy and 4, 6 to 8 cylinder engines (OMC 981937, 981939 and 985096).

- Sherwood G56 pumps on North American 6.2L diesel engines.

- Sherwood G95-1 pumps on Glastron Boat 121, 182 and 302 CI engines.

- Sherwood G157, L90 and P105 on some Marine Power, Lenco and Osco Motors engines.

- Sherwood G1004, G1005, K75, K75B, L10 and L10B pumps on Onan 4 and 5 cylinder diesel engines.

- Sherwood J70 and L80 pumps on Commander 302 and 351 engines (Commander CM1-10-610 and C2-10-610).

- Sherwood K90 pumps on Isuzu 4 and 6 cylinder diesel engines (Isuzu X-26230-1023).

- Sherwood N10460, N10470, Q10770G, R10955G and R10970G pumps on Gray Marine Compact V8 215, 225 CW and CCW engines and Gov engines (Gray Marine G76647, G80300, G80301, G80971 and G85106).

- Sherwood P151 pumps on US Marine 351 Ford engines.

- Sherwood R991 pumps on Yamaha 4.3 V6, 305/350 Chevy engines (Yamaha 10100000).
