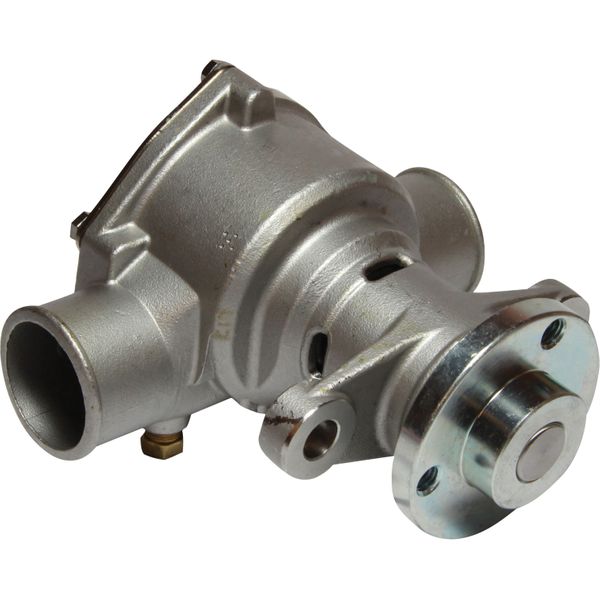

Sherwood P1016 Flange Mounted Raw Water Engine Cooling Pump (1-1/2")

Part No: SWP1016

The Sherwood P1016 flexible impeller engine cooling pump replaces the Sherwood pump model P1016-01.

Typical applications for the Sherwood P1016 pump include: Cummins QSD 2.0 & 2.8 engines, replaces Cummins 854179001, Mercury MerCruiser 879312023 and 854179001 pumps.

This is a genuine Sherwood P1016 flange mounted boat engine cooling pump, using raw water intake (river water or sea water) to cool the engine. The Sherwood P1016 is supplied complete with a 12 vane through key drive flexible neoprene impeller.

The raw water engine cooling pump is the heart of the marine engine, supplying a continuous flow of raw water to maintain temperatures consistent with the demanding engine performance. Over the years, Sherwood raw water pumps have developed a reputation of excellence in quality; and today are chosen for their performance and dependability by the most prestigious marine engine manufacturers.

Sherwood pumps are one of the largest suppliers of flexible rubber impeller cooling pumps for marine engines in the USA. They can be found fitted on some of the most well known engine brands in both pleasure and commercial boats.

To ensure that your boat engine cooling pump performs as required, regular preventative maintenance and inspection should be carried out. The Sherwood engine cooling pump impeller should be replaced every 3 - 12 months depending on application.

The number one reason for premature engine wear is overheating. To maintain engine performance, insist upon genuine Sherwood impeller pumps, impellers and service kits.

Sherwood P1016 Spare Parts:

Key | Spare Parts | Part Number | Quantity

1 | Cap Screw | 24888 | 4

2 | Lockwasher | 24889 | 4

3 | Cover Plate | 24887 | 1

4 | Housing | 24882 | 1

5 | O-Ring | 12231 | 1

6 | Impeller | 10615 | 1

7 | Key | 4432 | 1

8 | Shaft | 24885 | 1

9 | Cam Screw Assembly | 24884 & 19996 | 1

10 | Cam Plate | 10929 | 1

11 | Wear Plate | 19295 | 1

12 | Retaining Ring | 4258 | 2

13 | Mechanical Seal | 12859 | 1

14 | Washer | 4264 | 1

15 | Hub | 24883 | 1

16 | Retaining Ring | 4259 | 1

17 | Bearing | 12211 | 2

18 | Spacer | 24886 | 1
