Sherwood Major Repair Kit 25121 for Sherwood Engine Cooling Pumps



Part No: SW25121

Sherwood pumps major repair kit for raw water engine cooling pumps. This repair kit is suitable for the following pump models: P1710, P1710-02, P1710-04, P1710A, P1710C, P1710X, P1726, P1726X, P1732-01, P1732-02, P1732-04, P1732A, P1732C and P1732X. Some of the components of this kit are listed below including two different seals depending on the pump's shaft. The early X and A model pumps feature the old style shaft which requires the 15955 (included in kit), unless a new shaft has been fitted. For all newer C versions and pumps with a new shaft, the seal required will be 25115.

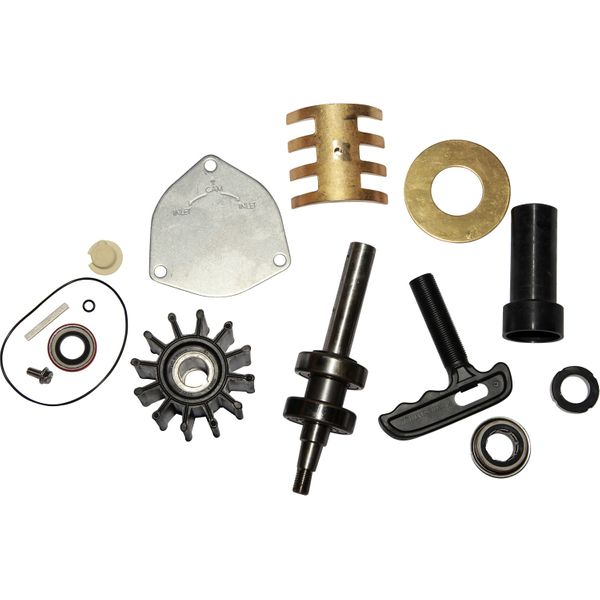

The Sherwood 25121 major repair kit contains:

- Impeller 17000K

- 2x O-Rings 15945

- Cover 18742

- Key 19667

- Cam 21318

- Cam Screw 19714

- Mechanical Seal 15955

- Lip Seal 21776

- Wear Plate 24162

- Shaft & Bearing Assembly 25119

- Key Retention Plug



Application	Sherwood Pumps: P1710, P1710-02, P1710-04, P1710A, P1710C, P1710X, P1726, P1726X, P1732-01, P1732-02, P1732-04, P1732A, P1732C & P1732X
Brand	Sherwood
Contents	Impeller, O-Rings, Cover, Key, Cam, Cam Screw, Mechanical Seal, Lip Seal, Wear Plate, Shaft & Bearing Assembly & Key Retention Plug
Drive Type Description	Key Drive
