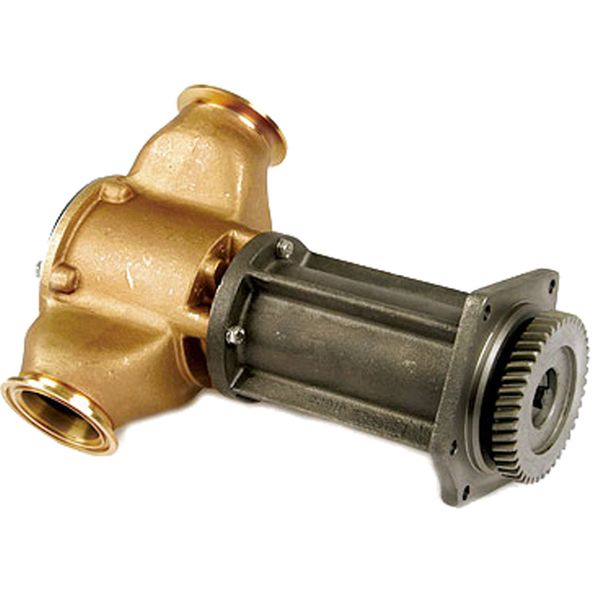

Sherwood G3001X Flange Mounted Engine Cooling Pump (3-3/4" Ports)

Part No: SWG3001X

This is a genuine Sherwood G3001X flange mounted boat engine cooling pump, using raw water intake (river water or sea water) to cool the engine. The Sherwood G3001X is supplied complete with a 10 vane splined flexible neoprene impeller.

The Sherwood G3001X flexible impeller engine cooling pump replaces the Sherwood pump models G22012-01, G22012X, G3001-01 and G3001-02, Caterpillar 147-7850, 212-7264 and 322-8594 pumps. Typical applications for the Sherwood raw water pump include: Caterpillar Series 32 3412 engines.

The raw water engine cooling pump is the heart of the marine engine, supplying a continuous flow of raw water to maintain temperatures consistent with the demanding engine performance. Over the years, Sherwood raw water pumps have developed a reputation of excellence in quality; and today are chosen for their performance and dependability by the most prestigious marine engine manufacturers.

Sherwood pumps are one of the largest suppliers of flexible rubber impeller cooling pumps for marine engines in the USA. They can be found fitted on some of the most well known engine brands in both pleasure and commercial boats.

To ensure that your boat engine cooling pump performs as required, regular preventative maintenance and inspection should be carried out. The Sherwood engine cooling pump impeller should be replaced every 3 - 12 months depending on application.

The number one reason for premature engine wear is overheating. To maintain engine performance, insist upon genuine Sherwood impeller pumps, impellers and service kits.

Sherwood G3001X Spare Parts:

Key | Spare Parts | Part Number | Quantity

1 | Cap Screw | 19626 | 5

2 | Lock Washer | 15944 | 9

3 | Cover Plate | 23113 | 1

4 | Quad Ring | 23111 | 1

5 | Impeller Kit | 30000K | 1

6 | Cam Liner Half | 25072 | 2

7 | Wear Plate | 23112 | 1

8 | Alignment Pin | 21566 | 1

9 | Retaining Ring | 23115 | 1

10 & 14 | Mechanical Seal | 23906 | 1

11 | Bolt | 23211 | 4

12 | Body | 23919 | 1

13 | Housing | 24159 | 1

15 | Gear | 23181 | 1

16 | Bolt | 23194 | 1

17 | Lock Washer | 23196 | 1

18 | Thrust Washer | 23195 | 1

19 | Retaining Ring | 23091 | 1

20 | Bearing Shield | 23922 | 1

21 | Bearing & Shaft Assembly | 25153 | 1

22 | Lip Seal | 25267 | 1

23 | Slinger | 23924 | 1
