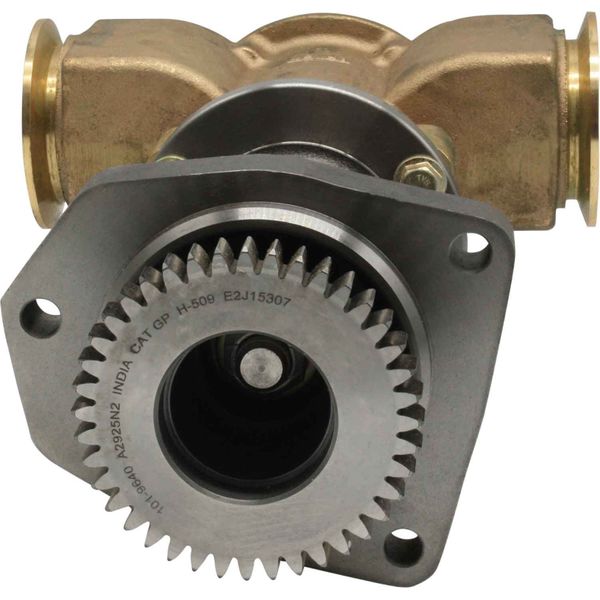

Sherwood G2902X Flange Mounted Engine Cooling Pump (3-3/4" Ports)

Part No: SWG2902X

Genuine Sherwood G2902X flange mounted boat engine cooling pump, uses raw water intake (river water or sea water) to cool the engine. The Sherwood G2902X is supplied complete with a 12 vane threaded flexible neoprene impeller.

The Sherwood G2902X flexible impeller engine cooling pump replaces the Sherwood pump models G18082-01, G18082X and G2902-01, Caterpillar 131-8272 and 196-8895 pumps. Typical applications for the Sherwood raw water pump include Caterpillar Series 18 3406E engines.

The raw water engine cooling pump is the heart of the marine engine, supplying a continuous flow of raw water to maintain temperatures consistent with the demanding engine performance. Sherwood raw water pumps have a reputation of excellence in quality; and are chosen for their performance and dependability by the most prestigious marine engine manufacturers.

Sherwood pumps are one of the largest suppliers of flexible rubber impeller cooling pumps for marine engines in the USA. Their pumps can be found on some of the most well known engine brands in both pleasure and commercial boats.

To ensure that your boat engine cooling pump performs as required, regular preventative maintenance and inspection should be carried out. The Sherwood engine cooling pump impeller should be replaced every 3 - 12 months depending on application.

The number one reason for premature engine wear is overheating. To maintain engine performance, insist upon genuine Sherwood impeller pumps, impellers and service kits.

Sherwood G2902X Spare Parts:

Key | Spare Parts | Part Number | Quantity

1 | Cap Screw | 19626 | 5

2 | Lock Washer | 15944 | 5

3 | Cover Plate | 19837 | 1

4 | Quad Ring | 21561 | 2

5 | Impeller Kit | 29000K | 1

6 | Cam Liner Half | 21533 | 2

7 | Wear Plate | 19836 | 1

8 | Pin | 21566 | 1

9 | Retaining Ring | 19762 | 2

10 | Washer | 19866 | 1

11 & 15 | Mechanical Seal | 23837 | 1

12 | Bolt | 21172 | 3

13 | Body | 23916 | 1

14 | Housing | 24623 | 1

16 | Gear | 22789 | 1

17 | Nut | 22790 | 1

18 | Washer | 22788 | 1

19 | Key | 22791 | 1

20 | Gear Spacer | 23926 | 1

21 | Retaining Ring | 19867 | 1

22 | Shaft & Bearing Assembly | 25145 | 1

23 | Lip Seal | 25264 | 1

25 | Bearing Shield | 23425 | 1
