Shakespeare Squatty Body Stainless Steel Whip Antenna (VHF)
Shakespeare Squatty Body Stainless Steel Whip Antenna (VHF)
Couldn't load pickup availability
Limited Stock - Call 01484 482269
Shakespeare Squatty Body Stainless Steel Whip Antenna (VHF)
Part No: 716516

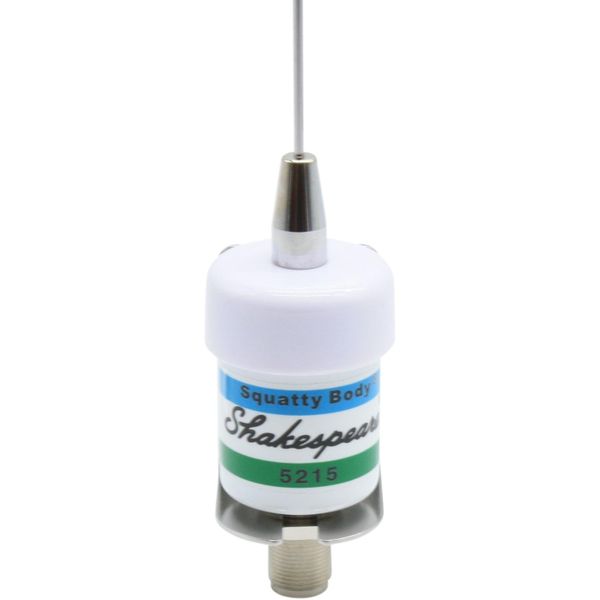

The Shakespeare V-Tronix Squatty Body VHF Antenna features a stainless steel whip and is supplied with an L shaped mounting bracket and hex back nut
The Squatty Body was designed and developed to be lightweight, low profile and is for masthead mounting. It can be used with the popular V-Tronix solderless connector system for easy installation and end-of-season dismounting.
This Shakespeare antenna is particularly designed for powerboats and sailing boats.
Shakespeare boat antennas benefit from low angle techniques that increase signal range and actually reduces power wastage. They insist on high quality and reliability, no matter how rough the seas are.
Stainless Steel Aerial:
- Lightweight.
- Low windage.
- L-shaped bracket for mounting at masthead.
- Solderless connector at masthead.
Gain
3 dB
Length
0.9M (3ft)
Supplied With
L-shaped Mounting Bracket & Hex Back Nut
Type
VHF Aerials
Brand
Shakespeare
Frequency
156-162MHz
Style
Stainless Steel Whip Antenna
Suitable For
Sailboats
Antenna Bandwidth
7MHz
Warranty
2 Years
Antenna Cable
(RG-58 cable Sold Separately)
Antenna Max Input Power
50W
Antenna VSWR
Nominally 1.5:1 at 156.8MHz
Connector Plug Supplied
PL-259 Sold Separately
DC Ground
No
Frequency Description
156-162MHz
Model
5215
Share
View full details
Shakespeare Squatty Body Stainless Steel Whip Antenna (VHF)
Part No: 716516
The Shakespeare V-Tronix Squatty Body VHF Antenna features a stainless steel whip and is supplied with an L shaped mounting bracket and hex back nut
The Squatty Body was designed and developed to be lightweight, low profile and is for masthead mounting. It can be used with the popular V-Tronix solderless connector system for easy installation and end-of-season dismounting.
This Shakespeare antenna is particularly designed for powerboats and sailing boats.
Shakespeare boat antennas benefit from low angle techniques that increase signal range and actually reduces power wastage. They insist on high quality and reliability, no matter how rough the seas are.
Stainless Steel Aerial:
- Lightweight.
- Low windage.
- L-shaped bracket for mounting at masthead.
- Solderless connector at masthead.
| Gain | 3 dB |
| Length | 0.9M (3ft) |
| Supplied With | L-shaped Mounting Bracket & Hex Back Nut |
| Type | VHF Aerials |
| Brand | Shakespeare |
| Frequency | 156-162MHz |
| Style | Stainless Steel Whip Antenna |
| Suitable For | Sailboats |
| Antenna Bandwidth | 7MHz |
| Warranty | 2 Years |
| Antenna Cable | (RG-58 cable Sold Separately) |
| Antenna Max Input Power | 50W |
| Antenna VSWR | Nominally 1.5:1 at 156.8MHz |
| Connector Plug Supplied | PL-259 Sold Separately |
| DC Ground | No |
| Frequency Description | 156-162MHz |
| Model | 5215 |
