Scout VHF 90 Masthead Fibreglass Antenna 1M with Windex 15 & Bracket
Scout VHF 90 Masthead Fibreglass Antenna 1M with Windex 15 & Bracket
Couldn't load pickup availability
Limited Stock - Call 01484 482269
Scout VHF 90 Masthead Fibreglass Antenna 1M with Windex 15 & Bracket
Part No: 6-64023
Scout VHF 90 high performance masthead antenna featuring the precision Windex wind indicator. This unique solution positions the Windex 15 on top of the Scout’s rigid foam injected antenna, allowing for high quality VHF transmission and true undisturbed wind readings. It is suitable for long range communication in sailing boat applications. The easy-to-install antenna wind indicator combination will free up space on top of the masthead.

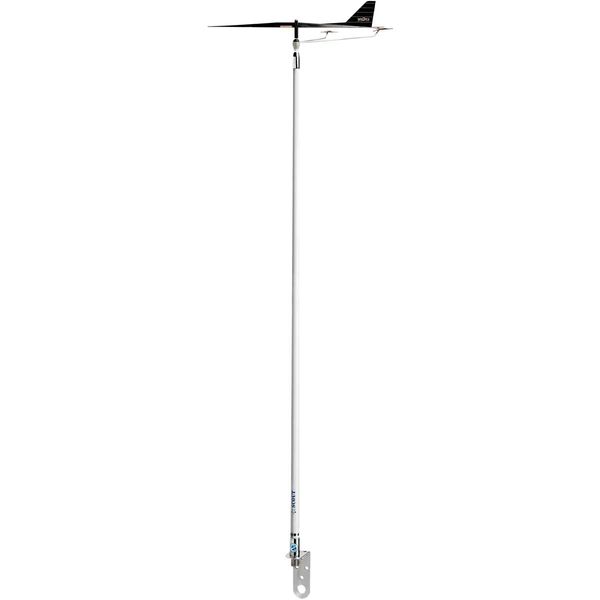

The Scout antenna measures 90cm long with its reinforced 1.4mm thick fibreglass whip, which is foam injected and 100% waterproof. It features a high gloss, ice white finish with anti-UV filter to prevent colour deterioration.

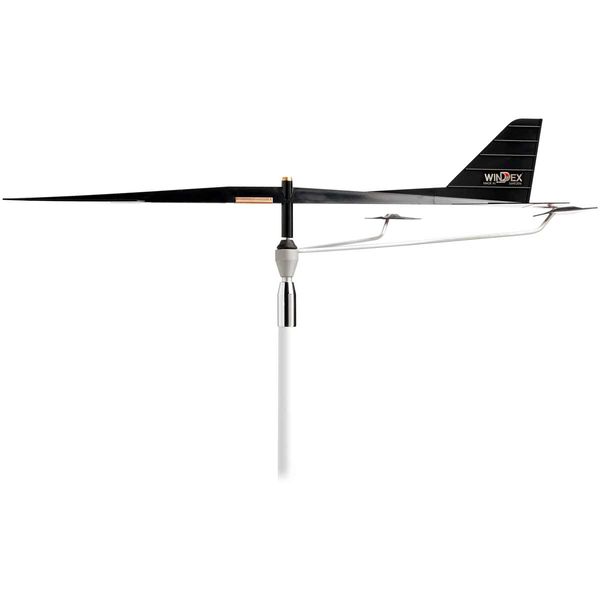

The Windex is securely connected to the Scout antenna with a chrome plated joint. The Windex continues its high performance with its famous sapphire jewel bearing suspension system measuring wind speeds down to 2 tenths of a knot.
The 3db antenna comes with a N-type female connector to optimise signal transmission quality, as well as a heavy duty 3mm thick electropolished stainless steel bracket for secure masthead installation.
With all its premium features the Windex Scout VHF is a must-have for sailboat owners.
Electrical length: 1/2 λ
Polarisation: Vertical
Gain
3 db
Length
0.9M (3ft)
Material
Fibreglass Whip
Type
VHF Aerials
Wattage
50W maximum
Weight
0.30kg
Brand
Scout
Frequency
156-162MHz
Style
Fibre Glass Antenna
Country of Origin
Italy
Antenna VSWR
< 1.5:1
DC Ground
Yes
Frequency Description
156-162MHz
Model
VHF 90 Windex 15
Share
View full details
Scout VHF 90 Masthead Fibreglass Antenna 1M with Windex 15 & Bracket
Part No: 6-64023
Scout VHF 90 high performance masthead antenna featuring the precision Windex wind indicator. This unique solution positions the Windex 15 on top of the Scout’s rigid foam injected antenna, allowing for high quality VHF transmission and true undisturbed wind readings. It is suitable for long range communication in sailing boat applications. The easy-to-install antenna wind indicator combination will free up space on top of the masthead.
The Scout antenna measures 90cm long with its reinforced 1.4mm thick fibreglass whip, which is foam injected and 100% waterproof. It features a high gloss, ice white finish with anti-UV filter to prevent colour deterioration.
The Windex is securely connected to the Scout antenna with a chrome plated joint. The Windex continues its high performance with its famous sapphire jewel bearing suspension system measuring wind speeds down to 2 tenths of a knot.
The 3db antenna comes with a N-type female connector to optimise signal transmission quality, as well as a heavy duty 3mm thick electropolished stainless steel bracket for secure masthead installation.
With all its premium features the Windex Scout VHF is a must-have for sailboat owners.
Electrical length: 1/2 λ
Polarisation: Vertical
| Gain | 3 db |
| Length | 0.9M (3ft) |
| Material | Fibreglass Whip |
| Type | VHF Aerials |
| Wattage | 50W maximum |
| Weight | 0.30kg |
| Brand | Scout |
| Frequency | 156-162MHz |
| Style | Fibre Glass Antenna |
| Country of Origin | Italy |
| Antenna VSWR | < 1.5:1 |
| DC Ground | Yes |
| Frequency Description | 156-162MHz |
| Model | VHF 90 Windex 15 |
