Scout
Scout Quick 4 3db VHF Fibreglass Whip Antenna 1M (3'3") with 5M Cable
Scout Quick 4 3db VHF Fibreglass Whip Antenna 1M (3'3") with 5M Cable
Couldn't load pickup availability
Limited Stock - Call 01484 482269
Scout Quick 4 3db VHF Fibreglass Whip Antenna 1M (3'3") with 5M Cable
Part No: 6-64038

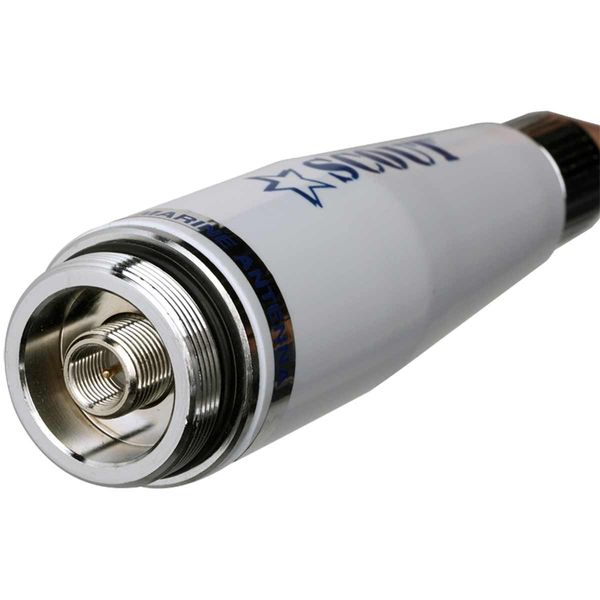

The Scout Quick 4 marine antenna is ready-to-install and easy-to-remove, with it's QuickFit design there is no need to install RF connectors. Ideal for all types of boat, with a removable fibreglass rod. Scout's QuickFit antennas are built with FME type terminals, supplied with coaxial cables with pre-installed connectors. This antenna does not require any specific equipment or tools to install on the boat, whether on deck, rail or mast. Installation is simple - no technical skills are required.

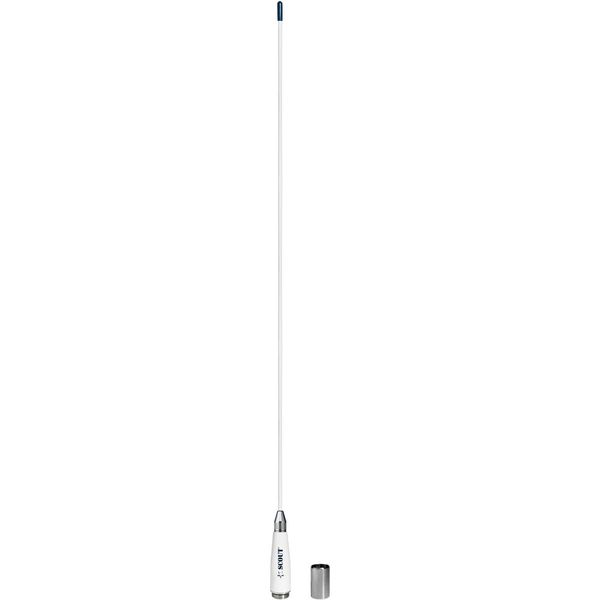

The Quick 4 VHF antenna measures 1 metre long with a 1.4mm thick fibreglass whip which is foam injected and 100% waterproof. It features a high gloss, ice white finish with anti-UV filter to prevent colour deterioration.

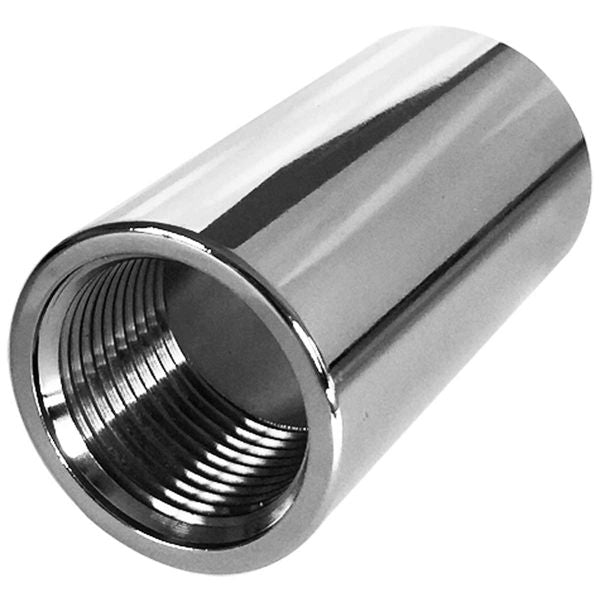

The 3db fibreglass antenna comes with a 5 metre (16.4') RG-58 CU MIL coaxial cable, a 1" x 14 thread adaptor and a FME male to PL-259 male adaptor to complete the installation.
Electrical length: 1/2 λ
Polarisation: Vertical
Gain
3 db
Length
1.5M (5ft)
Material
Fibreglass Whip
Supplied With
5m Coax Cable, 1" x 1/4 Thread Adaptor & FME Male to PL-259 Male Adaptor
Type
VHF Aerials
Wattage
50W maximum
Weight
0.40kg
Brand
Scout
Frequency
156-162MHz
Style
Fibre Glass Antenna
Country of Origin
Italy
Antenna VSWR
< 1.5:1
DC Ground
Yes
Frequency Description
156-162MHz
Model
Quick 4
Thread Size
1" x 14
