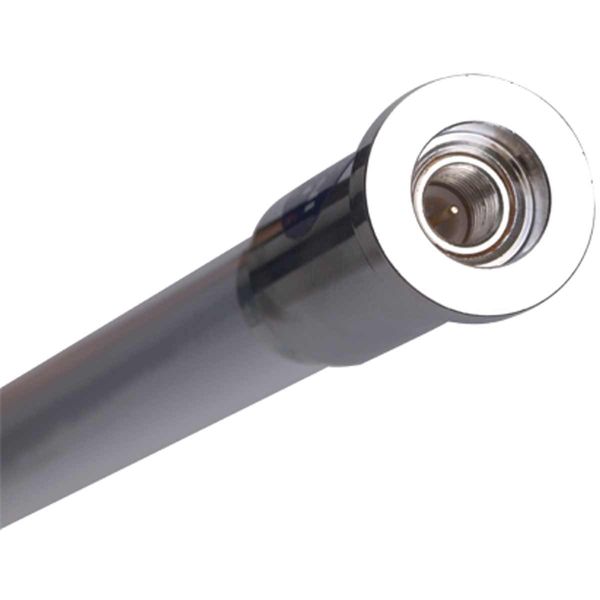

Scout Quick 1 3db VHF Fibreglass Antenna 1M with 5M Cable (White)
Scout Quick 1 3db VHF Fibreglass Antenna 1M with 5M Cable (White)
Couldn't load pickup availability
Limited Stock - Call 01484 482269
Scout Quick 1 3db VHF Fibreglass Antenna 1M with 5M Cable (White)
Part No: 6-64033
The Scout Quick 1 marine antenna is ready-to-install and easy-to-remove, with it's QuickFit design there is no need to install RF connectors. Ideal for motorboats and sail boats. Scout's QuickFit antennas are built with FME type terminals, supplied with coaxial cables with pre-installed connectors. This antenna does not require any specific equipment or tools to install on the boat, whether on deck, rail or mast. Installation is simple - no technical skills are required.
The Quick 1 VHF antenna measures 1 metre long, and guarantees the same performance as a 1.5m long marine antenna. It features a 1.4mm thick fibreglass whip which is foam injected and 100% waterproof. With a high gloss, ice white finish with anti-UV filter to prevent colour deterioration.
The 3db fibreglass antenna comes with a 5 metre (16.4') RG-58 CU MIL coaxial cable and a FME male to PL-259 male adaptor to complete the installation.
Electrical length: 1/2 λ
Polarisation: Vertical
Gain
3 db
Length
1M (3ft 3")
Material
Fibreglass Whip
Supplied With
5m Coax Cable & Adaptor FME Male to PL-259 Male
Type
VHF Aerials
Wattage
50W maximum
Weight
0.47kg
Brand
Scout
Frequency
156-162MHz
Style
Fibre Glass Antenna
Country of Origin
Italy
Antenna VSWR
< 1.5:1
DC Ground
Yes
Frequency Description
156-162MHz
Model
Quick 1
Thread Size
1" x 14
Share
View full details
Scout Quick 1 3db VHF Fibreglass Antenna 1M with 5M Cable (White)
Part No: 6-64033
The Scout Quick 1 marine antenna is ready-to-install and easy-to-remove, with it's QuickFit design there is no need to install RF connectors. Ideal for motorboats and sail boats. Scout's QuickFit antennas are built with FME type terminals, supplied with coaxial cables with pre-installed connectors. This antenna does not require any specific equipment or tools to install on the boat, whether on deck, rail or mast. Installation is simple - no technical skills are required.
The Quick 1 VHF antenna measures 1 metre long, and guarantees the same performance as a 1.5m long marine antenna. It features a 1.4mm thick fibreglass whip which is foam injected and 100% waterproof. With a high gloss, ice white finish with anti-UV filter to prevent colour deterioration.
The 3db fibreglass antenna comes with a 5 metre (16.4') RG-58 CU MIL coaxial cable and a FME male to PL-259 male adaptor to complete the installation.
Electrical length: 1/2 λ
Polarisation: Vertical
| Gain | 3 db |
| Length | 1M (3ft 3") |
| Material | Fibreglass Whip |
| Supplied With | 5m Coax Cable & Adaptor FME Male to PL-259 Male |
| Type | VHF Aerials |
| Wattage | 50W maximum |
| Weight | 0.47kg |
| Brand | Scout |
| Frequency | 156-162MHz |
| Style | Fibre Glass Antenna |
| Country of Origin | Italy |
| Antenna VSWR | < 1.5:1 |
| DC Ground | Yes |
| Frequency Description | 156-162MHz |
| Model | Quick 1 |
| Thread Size | 1" x 14 |
