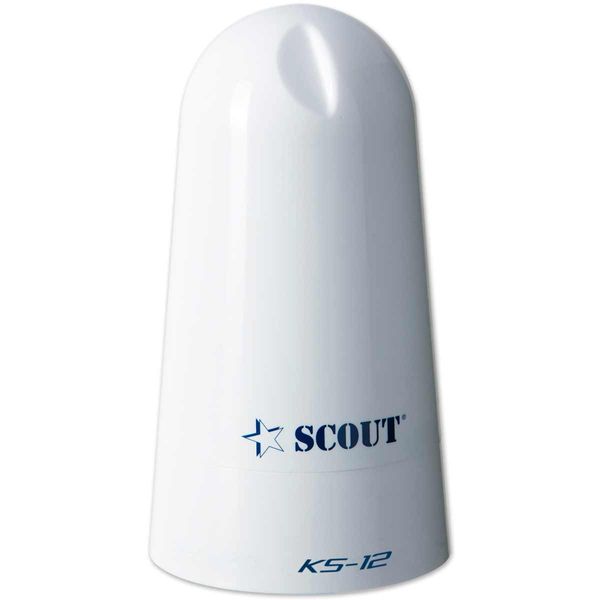

Scout KS-12 1db Compact VHF Antenna 0.2M (8") with 6M Cable
Part No: 6-64028
The Scout KS-12 compact VHF antenna is suitable for all kinds of boats, matching the design of both Scout Wave antennas and Sea-Connect. The marine antenna measures only 20cm high and 11cm in diameter. This antenna features a UV resistant ASA body which is 100% waterproof and protected against colour deterioration. It features a high gloss ice white finish.
The antenna is easy to install on standard 1" x 14 threaded mounts or on the deck as a permanent fixture with the through-hole mounts (on non-metal surface/enclosure).

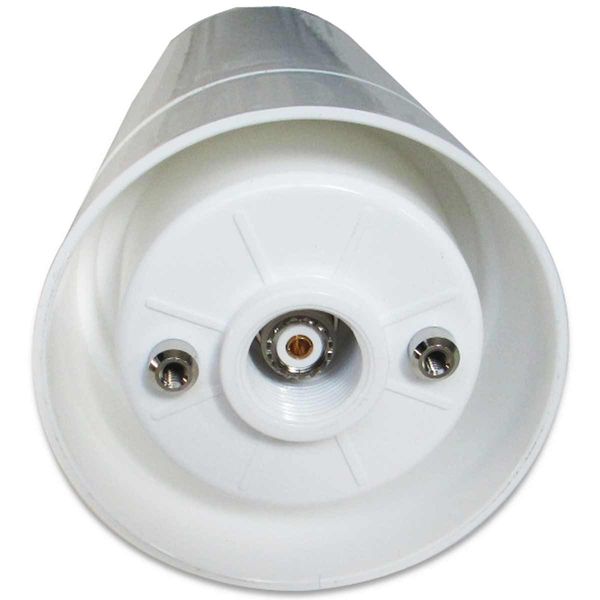

The 1db gain VHF antenna has a SO 239 connector and comes with a 6 metre (20') RG-58 CU MIL coaxial cable and two PL-259 male connectors.
Electrical length: 1/2 λ
Polarisation: Vertical
Gain
1 db
Length
0.2M (8")
Material
UV Resistant ASA Body
Supplied With
5m Coax Cable & 2x PL-259 Connector
Type
VHF Aerials
Wattage
50W maximum
Weight
0.30kg
Brand
Scout
Frequency
156-162MHz
Style
HDTV Antenna
Country of Origin
Italy
Antenna VSWR
< 1.5:1
DC Ground
Yes
Diameter Description
11cm (4")
Frequency Description
156-162MHz
Model
KS-12
Thread Size
1" x 14
Share
View full details
Scout KS-12 1db Compact VHF Antenna 0.2M (8") with 6M Cable
Part No: 6-64028
The Scout KS-12 compact VHF antenna is suitable for all kinds of boats, matching the design of both Scout Wave antennas and Sea-Connect. The marine antenna measures only 20cm high and 11cm in diameter. This antenna features a UV resistant ASA body which is 100% waterproof and protected against colour deterioration. It features a high gloss ice white finish.
The antenna is easy to install on standard 1" x 14 threaded mounts or on the deck as a permanent fixture with the through-hole mounts (on non-metal surface/enclosure).
The 1db gain VHF antenna has a SO 239 connector and comes with a 6 metre (20') RG-58 CU MIL coaxial cable and two PL-259 male connectors.
Electrical length: 1/2 λ
Polarisation: Vertical
| Gain | 1 db |
| Length | 0.2M (8") |
| Material | UV Resistant ASA Body |
| Supplied With | 5m Coax Cable & 2x PL-259 Connector |
| Type | VHF Aerials |
| Wattage | 50W maximum |
| Weight | 0.30kg |
| Brand | Scout |
| Frequency | 156-162MHz |
| Style | HDTV Antenna |
| Country of Origin | Italy |
| Antenna VSWR | < 1.5:1 |
| DC Ground | Yes |
| Diameter Description | 11cm (4") |
| Frequency Description | 156-162MHz |
| Model | KS-12 |
| Thread Size | 1" x 14 |
