Scout KM-3F/20mKIT 3db VHF Fibreglass Antenna 0.9M (3') Complete Set
Scout KM-3F/20mKIT 3db VHF Fibreglass Antenna 0.9M (3') Complete Set
Regular price
£140.95 GBP
Regular price
£117.46 GBP
Sale price
£140.95 GBP
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Limited Stock - Call 01484 482269
Scout KM-3F/20mKIT 3db VHF Fibreglass Antenna 0.9M (3') Complete Set
Part No: 6-64017
The Scout KM-3F/20mKIT VHF masthead antenna is designed specifically for sailing boats, which require a light-weight antenna that is flexible, extremely weather resistant and high performing. The marine antenna measures 90cm long, with a 1.4mm thick fibreglass whip which is foam injected and 100% waterproof. It features a high gloss, ice white finish with anti-UV filter to prevent colour deterioration.

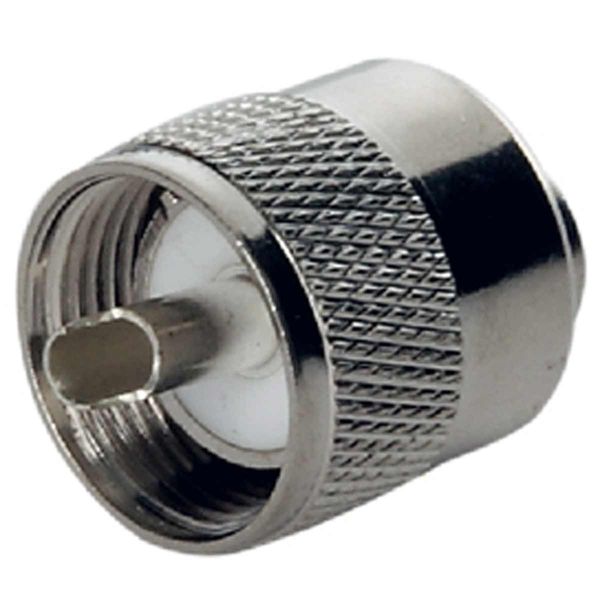

The 3db antenna comes complete with a stainless steel mounting bracket for quick and easy installation, as well as a 20 metre (65') RG-58 CU MIL coaxial cable and two PL-259 connectors to complete the installation.
Electrical length: 1/2 λ
Polarisation: Vertical
Gain
3 db
Length
0.9M (3ft)
Material
Fibreglass Whip
Supplied With
Stainless Steel Bracket, 20m Coax Cable & 2x PL-259 Connector
Type
VHF Aerials
Wattage
50W maximum
Weight
0.23kg
Brand
Scout
Frequency
156-162MHz
Style
Fibre Glass Antenna
Country of Origin
Italy
Antenna VSWR
< 1.5:1
DC Ground
Yes
Frequency Description
156-162MHz
Model
KM-3F/20mKIT
Share
View full details
Scout KM-3F/20mKIT 3db VHF Fibreglass Antenna 0.9M (3') Complete Set
Part No: 6-64017
The Scout KM-3F/20mKIT VHF masthead antenna is designed specifically for sailing boats, which require a light-weight antenna that is flexible, extremely weather resistant and high performing. The marine antenna measures 90cm long, with a 1.4mm thick fibreglass whip which is foam injected and 100% waterproof. It features a high gloss, ice white finish with anti-UV filter to prevent colour deterioration.
The 3db antenna comes complete with a stainless steel mounting bracket for quick and easy installation, as well as a 20 metre (65') RG-58 CU MIL coaxial cable and two PL-259 connectors to complete the installation.
Electrical length: 1/2 λ
Polarisation: Vertical
| Gain | 3 db |
| Length | 0.9M (3ft) |
| Material | Fibreglass Whip |
| Supplied With | Stainless Steel Bracket, 20m Coax Cable & 2x PL-259 Connector |
| Type | VHF Aerials |
| Wattage | 50W maximum |
| Weight | 0.23kg |
| Brand | Scout |
| Frequency | 156-162MHz |
| Style | Fibre Glass Antenna |
| Country of Origin | Italy |
| Antenna VSWR | < 1.5:1 |
| DC Ground | Yes |
| Frequency Description | 156-162MHz |
| Model | KM-3F/20mKIT |
