Scout KM-3A/20mKIT 3db Masthead VHF SS Antenna 1M (3'3") Complete Set
Scout KM-3A/20mKIT 3db Masthead VHF SS Antenna 1M (3'3") Complete Set
Regular price
£140.95 GBP
Regular price
£117.46 GBP
Sale price
£140.95 GBP
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Limited Stock - Call 01484 482269
Scout KM-3A/20mKIT 3db Masthead VHF SS Antenna 1M (3'3") Complete Set
Part No: 6-64016
The Scout KM-3A/20mKIT VHF masthead antenna kit is designed specifically for sailing boats, which require a light-weight antenna that is flexible, resistant and high performing. The marine antenna measures only 100cm and features an electropolished stainless steel whip that matches perfectly with most sailboat designs.

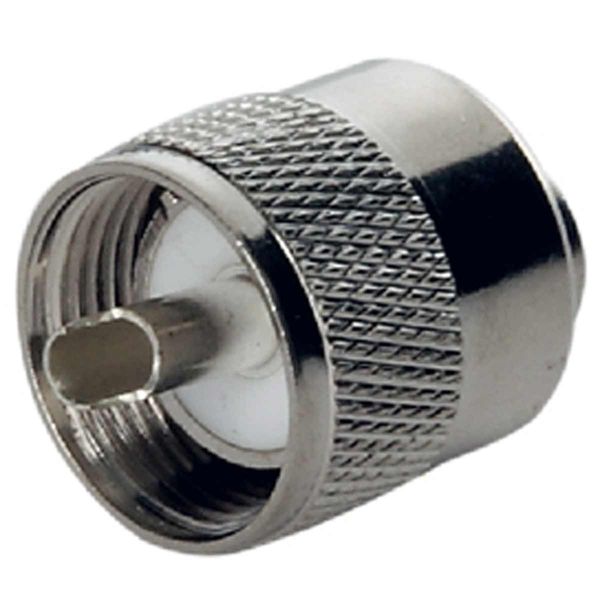

The 3db antenna comes complete with a stainless steel mounting bracket for quick and easy installation, as well as a 20 metre (65') RG-58 CU MIL coaxial cable and two PL-259 connectors to complete the installation.
Electrical length: 1/2 λ
Polarisation: Vertical
Gain
3 db
Length
1M (3ft 3")
Material
Stainless Steel Whip
Supplied With
Stainless Steel Bracket, 20m Coax Cable & 2x PL-259 Connector
Type
VHF Aerials
Wattage
50W maximum
Weight
0.23kg
Brand
Scout
Frequency
156-162MHz
Style
Stainless Steel Whip Antenna
Country of Origin
Italy
Antenna VSWR
< 1.5:1
DC Ground
Yes
Frequency Description
156-162MHz
Model
KM-3A/20mKIT
