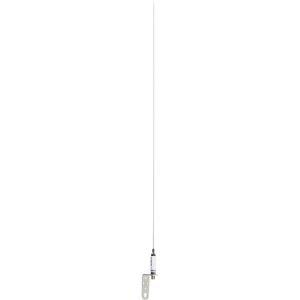

Scout KM-30A AIS Masthead SS Antenna 0.9M (3') with SS Bracket
Scout KM-30A AIS Masthead SS Antenna 0.9M (3') with SS Bracket
Couldn't load pickup availability
Limited Stock - Call 01484 482269
Scout KM-30A AIS Masthead SS Antenna 0.9M (3') with SS Bracket
Part No: 6-64102
Scout KS-30A stainless steel antenna is tuned to AIS frequencies and designed specifically for sailing boat automated tracking systems. The marine antenna is extremely light and flexible.
It measures 90cm long with an electropolished stainless steel whip. The AIS antenna features a high gloss, ice white finish with anti-UV filter to prevent colour deterioration.
The 3db stainless steel antenna comes with a heavy duty 3mm thick electropolished stainless steel bracket for secure masthead installation, and a SO 239 connector to complete the installation.
Electrical length: 1/2 λ
Polarisation: Vertical
AIS stands for Automatic Identification System, which is an automated tracking system used on ships and by Vessel Traffic Services (VTS) for identifying and locating vessels by electronically exchanging data with other nearby ships and VTS stations. AIS transponders use two different frequencies; VHF maritime channels 87B (161.975 MHz) and 88B (162.025 MHz).
Gain
3 db
Length
0.9M (3ft)
Material
Stainless Steel Whip
Supplied With
Stainless Steel Bracket & SO 239 Connector
Type
AIS Aerials
Wattage
50W maximum
Weight
0.23kg
Brand
Scout
Frequency
161.975-162.025MHz
Style
Stainless Steel Whip Antenna
Country of Origin
Italy
Antenna VSWR
< 1.5:1
DC Ground
Yes
Frequency Description
161.975MHz & 162.025MHz
Model
KS-30A
Share
View full details
Scout KM-30A AIS Masthead SS Antenna 0.9M (3') with SS Bracket
Part No: 6-64102
Scout KS-30A stainless steel antenna is tuned to AIS frequencies and designed specifically for sailing boat automated tracking systems. The marine antenna is extremely light and flexible.
It measures 90cm long with an electropolished stainless steel whip. The AIS antenna features a high gloss, ice white finish with anti-UV filter to prevent colour deterioration.
The 3db stainless steel antenna comes with a heavy duty 3mm thick electropolished stainless steel bracket for secure masthead installation, and a SO 239 connector to complete the installation.
Electrical length: 1/2 λ
Polarisation: Vertical
AIS stands for Automatic Identification System, which is an automated tracking system used on ships and by Vessel Traffic Services (VTS) for identifying and locating vessels by electronically exchanging data with other nearby ships and VTS stations. AIS transponders use two different frequencies; VHF maritime channels 87B (161.975 MHz) and 88B (162.025 MHz).
| Gain | 3 db |
| Length | 0.9M (3ft) |
| Material | Stainless Steel Whip |
| Supplied With | Stainless Steel Bracket & SO 239 Connector |
| Type | AIS Aerials |
| Wattage | 50W maximum |
| Weight | 0.23kg |
| Brand | Scout |
| Frequency | 161.975-162.025MHz |
| Style | Stainless Steel Whip Antenna |
| Country of Origin | Italy |
| Antenna VSWR | < 1.5:1 |
| DC Ground | Yes |
| Frequency Description | 161.975MHz & 162.025MHz |
| Model | KS-30A |
