Scanstrut
Scanstrut SC91 Satcom Antenna Mount in Stainless Steel 316 (KNS & KVH)
Scanstrut SC91 Satcom Antenna Mount in Stainless Steel 316 (KNS & KVH)
Regular price
£2,972.33 GBP
Regular price
£2,476.94 GBP
Sale price
£2,972.33 GBP
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Limited Stock - Call 01484 482269

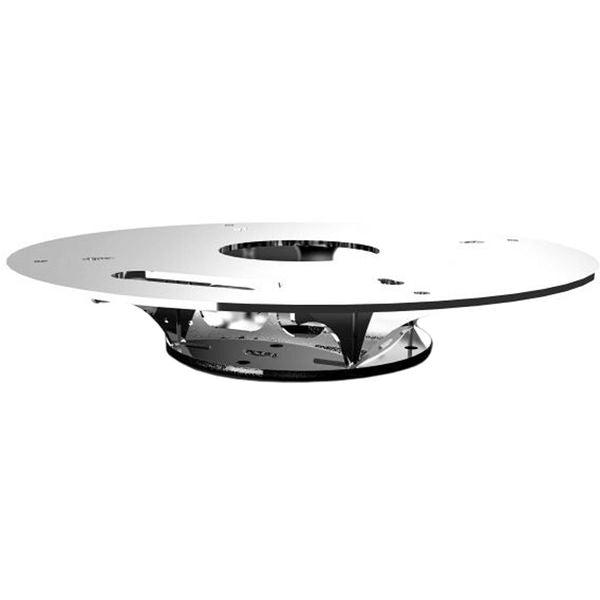

Scanstrut SC91 Satcom Antenna Mount in Stainless Steel 316 (KNS & KVH)
Part No: 6-80623
Scanstrut SC91 is the largest Satcom Antenna Mount in their range, it is made from marine grade 316 Stainless Steel and is mirror polished for hi-end finish. The GPS antenna mount provides an ultra-robust option for mounting some of the worlds premium Satcom domes.
The mount fits the following Satcoms:
- Intellian FB250, FB500, GX100NX, V60, V60E, V60Ka, V65, V80G & v85NX
- KNS C4, C5, K7, Radome 60 & S4
- KVH Tracphone FB500, TracPhone V11-HTS & TracVision TV6
- Minimises footprint of the antenna by 45%
- Raises antenna by 80mm, allowing inspection hatch to open fully for easy cable connection
Height Description
88mm (3.46")
Material
8mm Marine-Grade Stainless Steel 316
Brand
Scanstrut
Diameter Description
Top: 480mm (18.9"), Bottom: 250mm (9.84"), Mounting Holes: 10mm (0.39"), 12.5mm (0.49") & 16mm (0.63")
Dimensions
Distance between mounting hole centres: 229mm to 248mm (9.02" - 9.76") square, 303mm (11.9") square, 215mm (8.46") PCD
Share
View full details
Scanstrut SC91 Satcom Antenna Mount in Stainless Steel 316 (KNS & KVH)
Part No: 6-80623
Scanstrut SC91 is the largest Satcom Antenna Mount in their range, it is made from marine grade 316 Stainless Steel and is mirror polished for hi-end finish. The GPS antenna mount provides an ultra-robust option for mounting some of the worlds premium Satcom domes.
The mount fits the following Satcoms:
- Intellian FB250, FB500, GX100NX, V60, V60E, V60Ka, V65, V80G & v85NX
- KNS C4, C5, K7, Radome 60 & S4
- KVH Tracphone FB500, TracPhone V11-HTS & TracVision TV6
- Minimises footprint of the antenna by 45%
- Raises antenna by 80mm, allowing inspection hatch to open fully for easy cable connection
| Height Description | 88mm (3.46") |
| Material | 8mm Marine-Grade Stainless Steel 316 |
| Brand | Scanstrut |
| Diameter Description | Top: 480mm (18.9"), Bottom: 250mm (9.84"), Mounting Holes: 10mm (0.39"), 12.5mm (0.49") & 16mm (0.63") |
| Dimensions | Distance between mounting hole centres: 229mm to 248mm (9.02" - 9.76") square, 303mm (11.9") square, 215mm (8.46") PCD |
