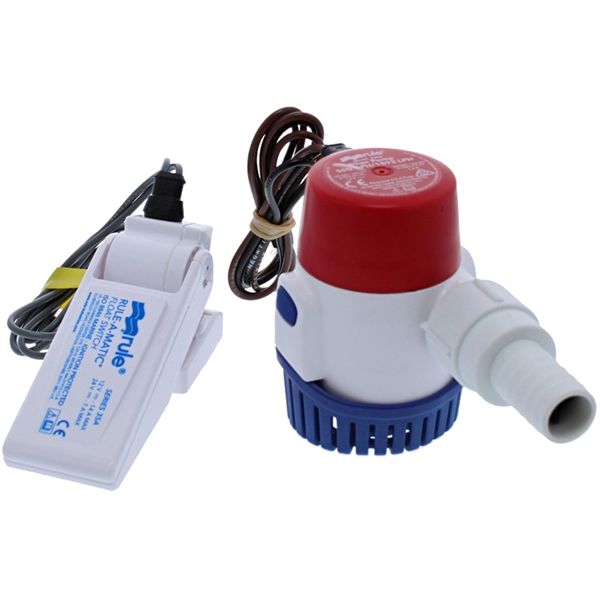

Rule 25DA 500 Submersible Bilge Pump with 35A Float Switch

Part No: JAB-25DA-35A

Rule 25DA 500 Series submersible bilge pump with a flow rate of up to 31 litres per minute (8 gallons).

The Rule submersible bilge pump is a light weight, compact pump with a tough plastic body and integral strainer. The quick release strainer allows for rapid cleaning of the submersible bilge pump internal components.

The Rule 500 range of small submersible bilge pumps are recommended for discharge heads up to a maximum of 2 metres. The submersible bilge pump meets ISO8846 marine (ignition) and ISO8849 marine (bilge pump) standards.

The Rule 25DA replaces the 12 volt Rule 25D and has the following features:

- Higher Flow - through an optimised impeller, the 25DA is able to provide greater flow at the same amperage

- Built-in Thermal Cut-Off (TCO) - this provides extra protection for both the pump and the vessel it is installed in

- Back Flow Prevention - the check valve reduces the amount of water left in the bilge, minimising odour and helping to keep your bilge cleaner

- Hidden Air Vents in the Body - these vents help prevent air-locking in challenging plumbing installations and helps with the check valve

- Threaded Discharge - this allows for easier pump installation, and easier maintenance

- Base Fits Existing Rule 25D Screw Holes

The 24DA-35A comes with the extremely popular narrow design Rule Float Switch, ideal for all bilges including narrow bilge applications.

The switch design prevents rapid on/off cycling. Mercury Free! Max current 14A.

Dimensions:

Length: 105mm

Width: 40mm

Height: 110mm (at max lift)

Rule model: 35A

Fixing hole centre: 51mm

Amps: Maximum 14A



Approvals	ISO8846 marine (ignition), ISO8849 marine (bilge pump) standards, CE Certification
Flow Rate Description	1892 LPH (500 US GPH)
Flow Rate 1 Metre Head	1362 LPH (360 US GPH)
Fuse	3A
Height Description	99mm (3.9")
Length	74mm (2.9")
Material	Tough Plastic Body
Outlet	19mm (3/4") ID Hose
Series	Rule 500
Voltage Description	12V DC
Width	64mm (2.5")
Brand	Rule
Primary Construction	Plastic
Automatic Bilge Pumps	No
Maximum Pump Head	0 to 2.2 Metres
Warranty	3 Years
Flow Rate 2 Metre Head	984 LPH (260 US GPH)
Hose Size	19mm / 3/4"
Ignition Protected	Yes
Maximum Recommended Head	2 Metres (6.5 Feet)
Model	25DA-35A
Replaces	504152 - Rule 25D 500 Submersible Bilge Pump
Amps Description	1.6A at 12V, 1.8A at 13.6V
