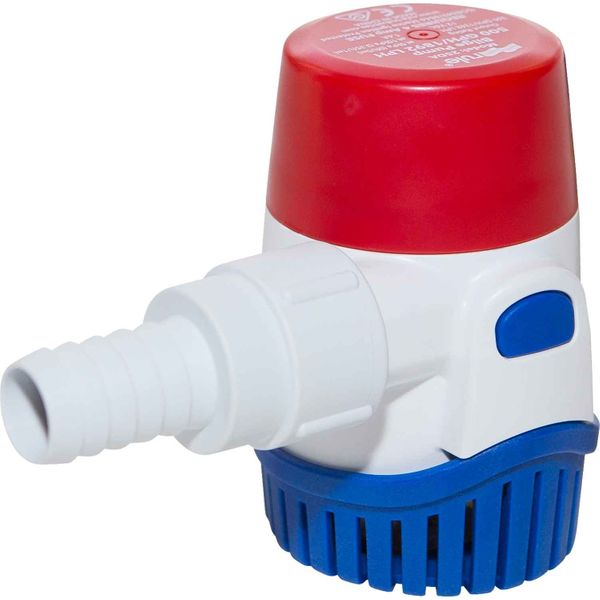

Rule 25DA 500 Submersible Bilge Pump (12V / 31 LPM / 19mm Hose)

Rule 25DA 500 Submersible Bilge Pump (12V / 31 LPM / 19mm Hose)

Regular price £31.62 GBP
Regular price Sale price £31.62 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Rule 25DA 500 Submersible Bilge Pump (12V / 31 LPM / 19mm Hose)


Part No: JAB-25DA

Rule 25DA 500 Series submersible bilge pump with a flow rate of up to 31 litres per minute (8 gallons).

The Rule submersible bilge pump is a light weight, compact pump with a tough plastic body and integral strainer. The quick release strainer allows for rapid cleaning of the submersible bilge pump internal components.

The Rule 500 range of small submersible bilge pumps are recommended for discharge heads up to a maximum of 2 metres. The submersible bilge pump meets ISO8846 marine (ignition) and ISO8849 marine (bilge pump) standards.

The Rule 25DA replaces the 12 volt Rule 25D and has the following features:

- Higher Flow - through an optimised impeller, the 25DA is able to provide greater flow at the same amperage

- Built-in Thermal Cut-Off (TCO) - this provides extra protection for both the pump and the vessel it is installed in

- Back Flow Prevention - the check valve reduces the amount of water left in the bilge, minimising odour and helping to keep your bilge cleaner

- Hidden Air Vents in the Body - these vents help prevent air-locking in challenging plumbing installations and helps with the check valve

- Threaded Discharge - this allows for easier pump installation, and easier maintenance

- Base Fits Existing Rule 25D Screw Holes



Approvals ISO8846 marine (ignition), ISO8849 marine (bilge pump) standards, CE Certification
Consumption 1.9 a
Flow Rate Description 1892 LPH (500 US GPH)
Flow Rate 1 Metre Head 1362 LPH (360 US GPH)
Fuse 3A
Height Description 99mm (3.9")
Length 74mm (2.9")
Material Tough Plastic Body
Outlet 19mm (3/4") ID Hose
Output 50 Ltr
Series Rule 500
Voltage Description 12V DC
Width 64mm (2.5")
Brand Rule
Primary Construction Plastic
Automatic Bilge Pumps No
Maximum Pump Head 0 to 2.2 Metres
Warranty 3 Years
Connections Description 19mm (3/4")
Flow Rate 2 Metre Head 984 LPH (260 US GPH)
Hose Size 19mm / 3/4"
Ignition Protected Yes
Maximum Recommended Head 2 Metres (6.5 Feet)
Model 25DA
Replaces 504152 - Rule 25D 500 Submersible Bilge Pump
Amps Description 1.6A at 12V, 1.8A at 13.6V
