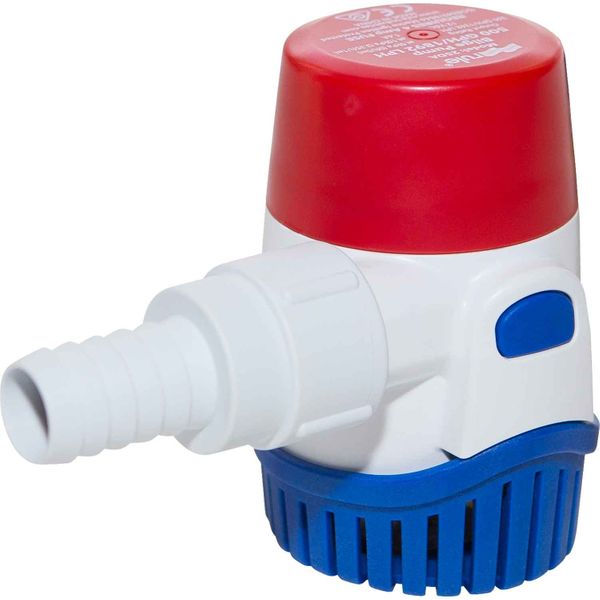

Rule 25DA-24 500 Submersible Bilge Pump (24V / 31 LPM / 19mm Hose)
Rule 25DA-24 500 Submersible Bilge Pump (24V / 31 LPM / 19mm Hose)
Couldn't load pickup availability
Limited Stock - Call 01484 482269
Rule 25DA-24 500 Submersible Bilge Pump (24V / 31 LPM / 19mm Hose)
Part No: JAB-25DA-24
Rule 25DA 500 Series submersible bilge pump with a flow rate of up to 31 litres per minute (8 gallons).
The Rule submersible bilge pump is a light weight, compact pump with a tough plastic body and integral strainer. The quick release strainer allows for rapid cleaning of the submersible bilge pump internal components.
The Rule 500 range of small submersible bilge pumps are recommended for discharge heads up to a maximum of 2 metres. The submersible bilge pump meets ISO8846 marine (ignition) and ISO8849 marine (bilge pump) standards.
The Rule 25DA-24 replaces the 24 volt Rule 26D and has the following features:
- Higher Flow - through an optimised impeller, the 25DA is able to provide greater flow at the same amperage
- Built-in Thermal Cut-Off (TCO) - this provides extra protection for both the pump and the vessel it is installed in
- Back Flow Prevention - the check valve reduces the amount of water left in the bilge, minimising odour and helping to keep your bilge cleaner
- Hidden Air Vents in the Body - these vents help prevent air-locking in challenging plumbing installations and helps with the check valve
- Threaded Discharge - this allows for easier pump installation, and easier maintenance
- Base Fits Existing Rule 26D Screw Holes
Approvals
ISO8846 marine (ignition), ISO8849 marine (bilge pump) standards, CE Certification
Flow Rate Description
1892 LPH (500 US GPH)
Flow Rate 1 Metre Head
1362 LPH (360 US GPH)
Fuse
1.5A
Height Description
99mm (3.9")
Length
74mm (2.9")
Material
Tough Plastic Body
Outlet
19mm (3/4") ID Hose
Series
Rule 500
Voltage Description
24V DC
Width
64mm (2.5")
Brand
Rule
Primary Construction
Plastic
Automatic Bilge Pumps
No
Maximum Pump Head
0 to 2.2 Metres
Warranty
3 Years
Flow Rate 2 Metre Head
984 LPH (260 US GPH)
Hose Size
19mm / 3/4"
Ignition Protected
Yes
Maximum Recommended Head
2 Metres (6.5 Feet)
Model
25DA
Replaces
504154 - Rule 26D 500 Submersible Bilge Pump
Amps Description
0.8A at 24V, 0.9A at 27.2V
