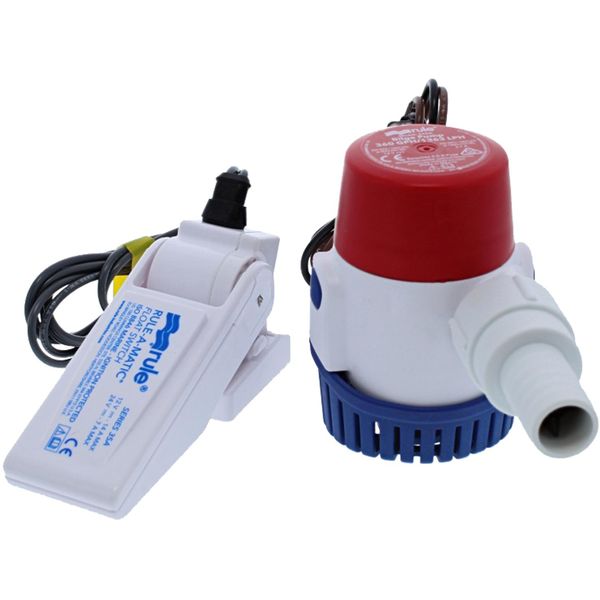

Rule 24DA 360 Submersible Bilge Pump with 35A Float Switch
Rule 24DA 360 Submersible Bilge Pump with 35A Float Switch
Couldn't load pickup availability
Limited Stock - Call 01484 482269
Rule 24DA 360 Submersible Bilge Pump with 35A Float Switch
Part No: JAB-24DA-35A
Rule 24DA 360 Series submersible bilge pump with a flow rate of up to 23 litres per minute (6 gallons).
The Rule submersible bilge pump is a light weight, compact pump with a tough plastic body and integral strainer. The quick release strainer allows for rapid cleaning of the submersible bilge pump internal components.
The Rule 360 range of small submersible bilge pumps are recommended for discharge heads up to a maximum of 2 metres. The submersible bilge pump meets ISO8846 marine (ignition) and ISO8849 marine (bilge pump) standards.
The Rule 24DA replaces the 12 volt Rule 24 and has the following features:
- Higher Flow - through an optimised impeller, the 24DA is able to provide greater flow at the same amperage
- Built-in Thermal Cut-Off (TCO) - this provides extra protection for both the pump and the vessel it is installed in
- Back Flow Prevention - the check valve reduces the amount of water left in the bilge, minimising odour and helping to keep your bilge cleaner
- Hidden Air Vents in the Body - these vents help prevent air-locking in challenging plumbing installations and helps with the check valve
- Threaded Discharge - this allows for easier pump installation, and easier maintenance
- Base Fits Existing Rule 24 Screw Holes
The 24DA-35A comes with the extremely popular narrow design Rule Float Switch, ideal for all bilges including narrow bilge applications.
The switch design prevents rapid on/off cycling. Mercury Free! Max current 14A.
Dimensions:
Length: 105mm
Width: 40mm
Height: 110mm (at max lift)
Rule model: 35A
Fixing hole centre: 51mm
Amps: Maximum 14A
Approvals
ISO8846 marine (ignition), ISO8849 marine (bilge pump) standards, CE Certification
Flow Rate Description
1362 LPH (360 US GPH)
Flow Rate 1 Metre Head
1003 LPH (265 GPH)
Fuse
2.5A
Height Description
99mm (3.9")
Length
74mm (2.9")
Outlet
19mm (3/4") ID Hose
Series
Rule 360
Voltage Description
12V DC
Width
64mm (2.5")
Brand
Rule
Automatic Bilge Pumps
No
Maximum Pump Head
0 to 2.2 Metres
Warranty
3 Years
Flow Rate 2 Metre Head
719LPH (190 US GPH)
Hose Size
19mm / 3/4"
Ignition Protected
Yes
Maximum Recommended Head
2 Metres (6.5 Feet)
Model
24DA-35A
Amps Description
2.1A at 12V, 2.4A at 13.6V
Share
View full details
Rule 24DA 360 Submersible Bilge Pump with 35A Float Switch
Part No: JAB-24DA-35A
Rule 24DA 360 Series submersible bilge pump with a flow rate of up to 23 litres per minute (6 gallons).
The Rule submersible bilge pump is a light weight, compact pump with a tough plastic body and integral strainer. The quick release strainer allows for rapid cleaning of the submersible bilge pump internal components.
The Rule 360 range of small submersible bilge pumps are recommended for discharge heads up to a maximum of 2 metres. The submersible bilge pump meets ISO8846 marine (ignition) and ISO8849 marine (bilge pump) standards.
The Rule 24DA replaces the 12 volt Rule 24 and has the following features:
- Higher Flow - through an optimised impeller, the 24DA is able to provide greater flow at the same amperage
- Built-in Thermal Cut-Off (TCO) - this provides extra protection for both the pump and the vessel it is installed in
- Back Flow Prevention - the check valve reduces the amount of water left in the bilge, minimising odour and helping to keep your bilge cleaner
- Hidden Air Vents in the Body - these vents help prevent air-locking in challenging plumbing installations and helps with the check valve
- Threaded Discharge - this allows for easier pump installation, and easier maintenance
- Base Fits Existing Rule 24 Screw Holes
The 24DA-35A comes with the extremely popular narrow design Rule Float Switch, ideal for all bilges including narrow bilge applications.
The switch design prevents rapid on/off cycling. Mercury Free! Max current 14A.
Dimensions:
Length: 105mm
Width: 40mm
Height: 110mm (at max lift)
Rule model: 35A
Fixing hole centre: 51mm
Amps: Maximum 14A
| Approvals | ISO8846 marine (ignition), ISO8849 marine (bilge pump) standards, CE Certification |
| Flow Rate Description | 1362 LPH (360 US GPH) |
| Flow Rate 1 Metre Head | 1003 LPH (265 GPH) |
| Fuse | 2.5A |
| Height Description | 99mm (3.9") |
| Length | 74mm (2.9") |
| Outlet | 19mm (3/4") ID Hose |
| Series | Rule 360 |
| Voltage Description | 12V DC |
| Width | 64mm (2.5") |
| Brand | Rule |
| Automatic Bilge Pumps | No |
| Maximum Pump Head | 0 to 2.2 Metres |
| Warranty | 3 Years |
| Flow Rate 2 Metre Head | 719LPH (190 US GPH) |
| Hose Size | 19mm / 3/4" |
| Ignition Protected | Yes |
| Maximum Recommended Head | 2 Metres (6.5 Feet) |
| Model | 24DA-35A |
| Amps Description | 2.1A at 12V, 2.4A at 13.6V |
