Roca
Roca Pantograph Wiper Arm for 12mm Shaft (Black / 470mm-750mm)
Roca Pantograph Wiper Arm for 12mm Shaft (Black / 470mm-750mm)
Regular price
£289.06 GBP
Regular price
£240.88 GBP
Sale price
£289.06 GBP
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Limited Stock - Call 01484 482269
Roca Pantograph Wiper Arm for 12mm Shaft (Black / 470mm-750mm)
Part No: 717642

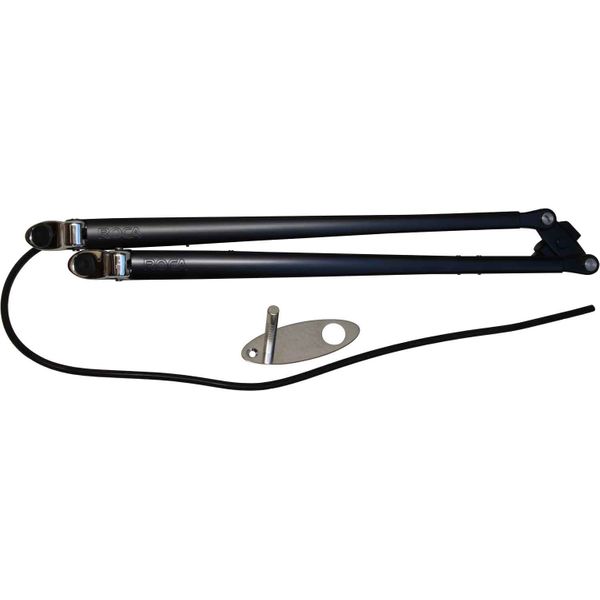

Roca marine windscreen wiper arm, made from black painted stainless steel. This is a double wiper arm designed to keep the wiper blade upright for parallel screen wiping, similar to the graphic shown.
The wiper arm is adjustable in length between 470mm and 750mm and features a 12mm shaft fitting, making it perfect for use with the Roca W25 and W38 single drive wiper motors. An adaptor plate is supplied to connect the two arms to one shaft spindle. The arm features a saddle end connection to attach the desired wiper blades.
This Roca wiper arm is made from stainless steel 304 and is finished with anti-glare paint, so doesn't compromise on style or substance.
Specifications:
Application
Roca W25 Series Wiper Motors and the W38 single drive wiper motor
Length
470mm to 750mm (18" to 30") (Adjustable)
Material
Painted Stainless Steel
Series
Roca W25 & W38 Wiper Motors
Brand
Roca
Primary Construction
Stainless Steel
Style
Pantograph Wiper Arm
Colour
Black
Connections Description
Motor Fitting: 12mm Shaft Diameter with 13.8mm Hex Nut, Blade Fitting: 16mm Wide Saddle Connection
Share
View full details
Roca Pantograph Wiper Arm for 12mm Shaft (Black / 470mm-750mm)
Part No: 717642
Roca marine windscreen wiper arm, made from black painted stainless steel. This is a double wiper arm designed to keep the wiper blade upright for parallel screen wiping, similar to the graphic shown.
The wiper arm is adjustable in length between 470mm and 750mm and features a 12mm shaft fitting, making it perfect for use with the Roca W25 and W38 single drive wiper motors. An adaptor plate is supplied to connect the two arms to one shaft spindle. The arm features a saddle end connection to attach the desired wiper blades.
This Roca wiper arm is made from stainless steel 304 and is finished with anti-glare paint, so doesn't compromise on style or substance.
Specifications:
| Application | Roca W25 Series Wiper Motors and the W38 single drive wiper motor |
| Length | 470mm to 750mm (18" to 30") (Adjustable) |
| Material | Painted Stainless Steel |
| Series | Roca W25 & W38 Wiper Motors |
| Brand | Roca |
| Primary Construction | Stainless Steel |
| Style | Pantograph Wiper Arm |
| Colour | Black |
| Connections Description | Motor Fitting: 12mm Shaft Diameter with 13.8mm Hex Nut, Blade Fitting: 16mm Wide Saddle Connection |
