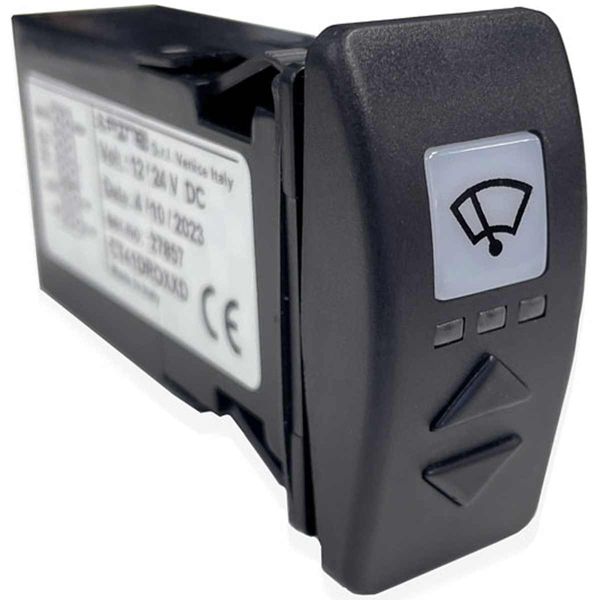

Roca CT41 Windscreen Wiper Control Box



Part No: 717450

Roca wiper control CT41 is suited for low-power motors with a parking switch. This windscreen wiper control works both with single-speed and double-speed wiper motors. Three buttons in the switch allow you to manage all the functions needed for windscreen cleaning: ON/OFF, timing, and washing program. No screws are needed for the installation.

Functions:

• 3 intermittent settings

• one or two continuous speeds, slow and high speed

• motor brake

• wash/wipe program

Polarity inversion protection

Motor output current: Single or double speed – 4 Amps max

Input: 1 parking switch (open in park position); Dimmer (connect to + supply if not used)

Output: 1 slow speed – SLOW; 1 high speed – FAST (if 2-speed motor); 1 wash pump (positive pole)

Connections: 10 poles connector

Storage temperature: -20°C / +70°C



Fuse	4A
Material	ABS Plastic Case
Voltage Description	12V & 24V DC (10V to 30V DC)
Brand	Roca
Country of Origin	Italy
Amps Description	Less than 20 mA on Stand-by
