R&D Marine Shaft Coupling Adaptor (5" to 6")
R&D Marine Shaft Coupling Adaptor (5" to 6")
Regular price
£308.48 GBP
Regular price
Sale price
£308.48 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
R&D Marine Shaft Coupling Adaptor (5" to 6")
Part No: 807246

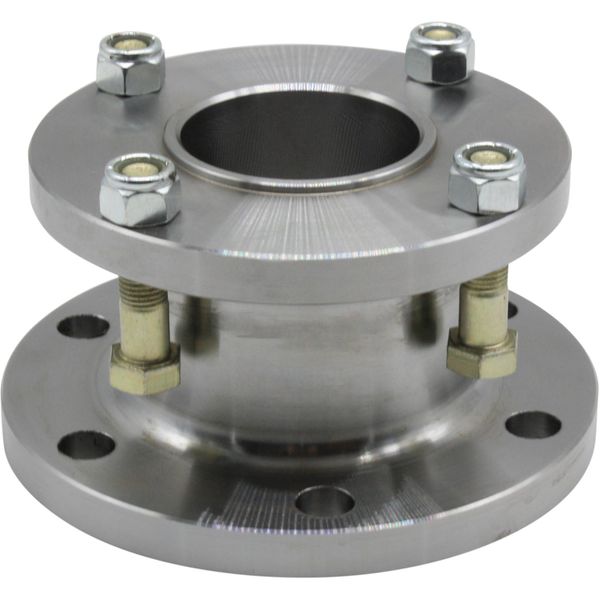

R&D 202-411 gearbox output flange adaptor allows a 5" gearbox flange to connect to a 6" flexible shaft coupling, and is suitable for Borgwarner, PRM, ZF Hurth and Twin Disc gearboxes, as well as Volvo gearboxes with a female register. The coupling has a maximum of 37 HP (27.6kW) per 100RPM. Effective length with coupling 55.4mm (2.18"); effective length of adaptor 74.7mm (2.94"). This shaft coupling adaptor is for use with R&D 910-032 flexible coupling (part number 807132).
| Length | 2.94" (74.7mm) effective length of a adaptor. 2.18" (55.4mm) effective length of coupling with 807132. |
| Type | Gearbox Adaptor Plates |
| Brand | R&D Marine |
| Coupling PCD | 4.25" / 107.9mm|4.75" / 120.6mm |
| Coupling Register Diameter | 2.50" / 63.5mm|3.00" / 76.2mm |
| Gearbox Output Coupling Diameter | 5.00" / 127mm|5.75" / 146mm |
| Country of Origin | United Kingdom |
| Model | 202-411 |
| Number of Fixing Holes | 4 (5") and 6 (6") |
| Register Gender | Male |
