R&D Marine 6" Split Clamp On Coupling for 45mm Shaft

Part No: 808625

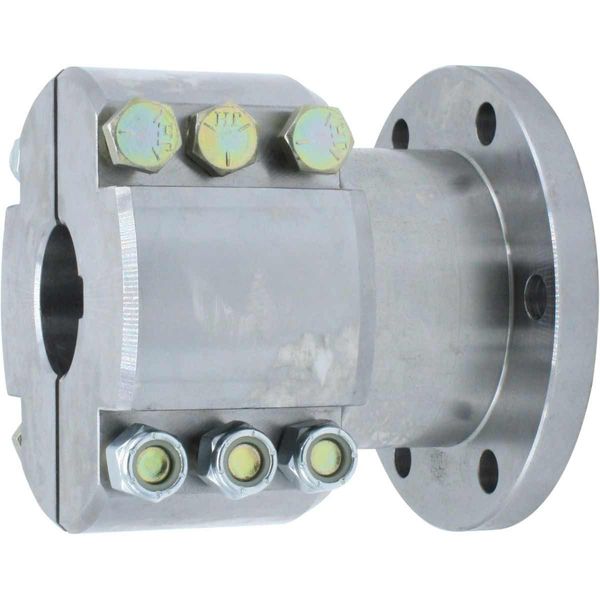

This clamp on split half coupling is machined from solid steel and mates with the gearbox output coupling to connect a 45mm diameter metric boat propeller shaft to the gearbox, usually via a flexible coupling.

The clamp on split type propeller shaft coupling is machined to suit the boat propeller shaft diameter but can accommodate the variations that can occur with normal boat propeller shaft tolerances. It is simple to install and can be adjusted to the required position on the shaft. This clamp on shaft coupling is bored with keyway and is secured to the boat propeller shaft with the clamp bolts supplied.

Typical applications include:

6" nominal gearbox flanges (5.75") for PRM, Borgwarner Velvet Drive, ZF and Twin Disc gearboxes.

Recommended torque for the clamp bolts: 100Nm (75 lbsft)

Coupling dimensions:

For propeller shaft diameter 45mm

Keyway to BS4235: Part 1 Rectangular

a - Flange outside diameter = 5.75"

b - Hole pitch circle = 4.75"

c - Number of holes = 6

d - Hole size = 0.50" (1/2")

e - Register diameter = 3.00" male

f - Coupling length = 5.50"

g - Coupling clamp boss diameter = 5.38"

R & D Marine Clamp on shaft coupling number 202-178J

Application	PRM, Borgwarner Velvet Drive, ZF and Twin Disc gearboxes
Length	5.50"
Brand	R&D Marine
Coupling PCD	4.75" / 120.6mm
Coupling Register Diameter	3.00" / 76.2mm
Gearbox Output Coupling Diameter	5.75" / 146mm
Shaft Size	45mm
Country of Origin	United Kingdom
Model	202-178J
Number of Fixing Holes	6
Register Gender	Male
