R&D Marine 4" Split Clamp On Coupling for 1" Shaft, Volvo Penta



Part No: 808456

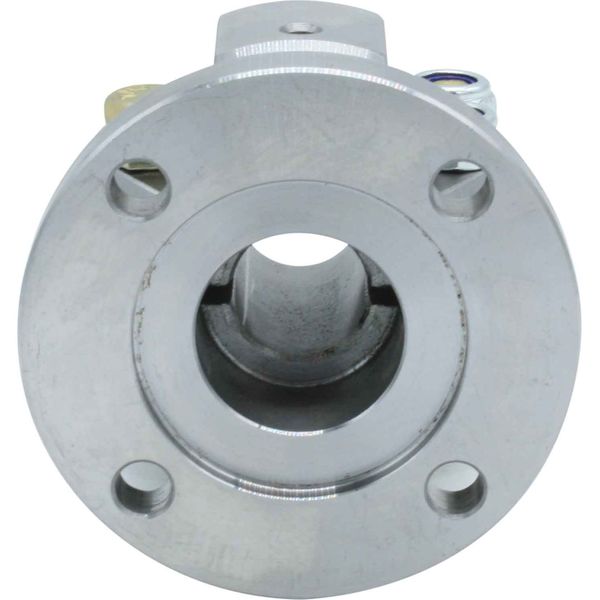

This clamp on split half coupling is machined from solid steel and mates with the gearbox output coupling to connect a 1.00" (1 inch) diameter imperial boat propeller shaft to a Volvo Penta gearbox, usually via a flexible coupling. This is a 'non-standard' bore size.

The clamp on split type propeller shaft coupling is machined to suit the boat propeller shaft diameter but can accommodate the variations that can occur with normal boat propeller shaft tolerances. It is simple to install and can be adjusted to the required position on the shaft. This clamp on shaft coupling is bored only (no keyway) and is secured to the boat propeller shaft with the clamp bolts supplied.

Typical applications include:

4" nominal gearbox flanges of Volvo Penta MS & RB gearboxes.

Recommended torque for the clamp bolts: 54Nm (40 lbsft)

Coupling dimensions:

For propeller shaft diameter 1" (bored only, no key way)

a - Flange outside diameter = 4.00"

b - Hole pitch circle = 80mm

c - Number of holes = 4

d - Hole size = 10mm

e - Register diameter = 60mm female

f - Coupling length = 3.28"

g - Coupling clamp boss diameter = 3.38"

R & D Marine Clamp on shaft coupling number 202-255B Special



Application	Volvo Penta MS & RB Gearboxes
Length	3.28"
Brand	R&D Marine
Coupling PCD	3.15" / 80mm
Coupling Register Diameter	2.36" / 60mm
Gearbox Output Coupling Diameter	4.00" / 101.6mm
Shaft Size	1"
Country of Origin	United Kingdom
Model	202-255B
Number of Fixing Holes	4
Register Gender	Female
