All About Boats
R&D Flexible Engine Mount Y150 for Yanmar Engines (60-240LBS)
R&D Flexible Engine Mount Y150 for Yanmar Engines (60-240LBS)
Regular price
£189.78 GBP
Regular price
Sale price
£189.78 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

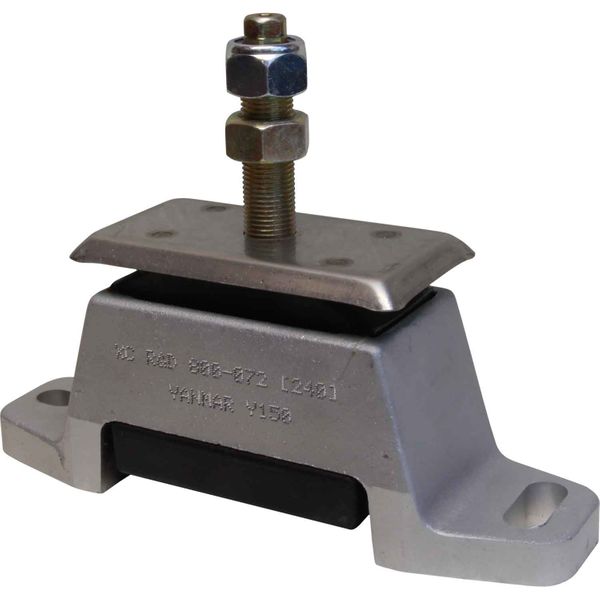

R&D Flexible Engine Mount Y150 for Yanmar Engines (60-240LBS)
Part No: 207072
The R&D flexible engine mount is designed to be a direct replacement for the Yanmar engine mount Y150.
The flexible engine mount has added features of being fail-safe, working within controlled limits and able to withstand a roll-over test.
Maximum clearance between the underside of the height adjusting nut and top washer must not be more than 10mm. If more height is required use a spacer under the mounting casting.
| Height Description | 155mm (6.1"), Base: 87mm (3.43") |
| Length | 206mm (8.11") |
| Maximum Load Description | 28kg to 109kg (60lbs to 240lbs) |
| Width | 60mm (2.36") |
| Brand | R&D Marine |
| Hole Centres | 175mm (6.89") |
| Country of Origin | United Kingdom |
| Engine Mount | Engine Mounts For Yanmar Engines |
| Deflection | 2.3mm to 8.5mm (0.09" to 0.335") |
| Dimensions | Height Adjusting Nut Thickness: 12.7mm (0.5") |
| Mount Pre loaded | 2.3mm (0.09") |
| Stud Size | M16 x 1.5 |
