R&D Marine

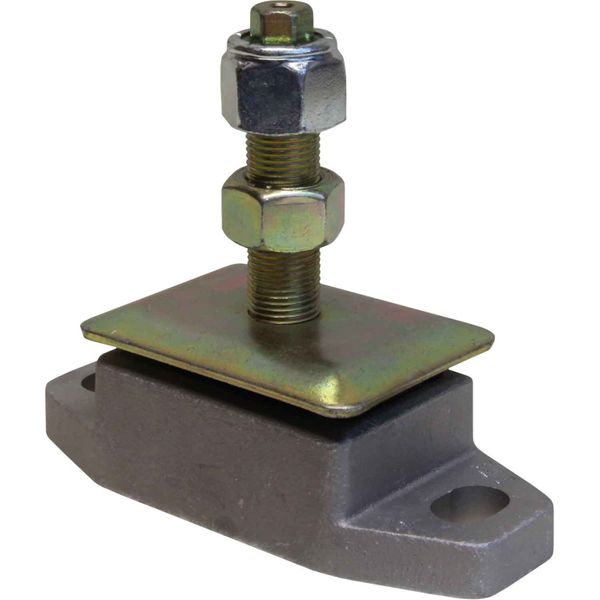

R&D Flexible Engine Mount (Shear Type / 70 - 171LBS / 5/8" Stud)
R&D Flexible Engine Mount (Shear Type / 70 - 171LBS / 5/8" Stud)
Regular price
£79.18 GBP
Regular price
£65.98 GBP
Sale price
£79.18 GBP
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Limited Stock - Call 01484 482269
R&D Flexible Engine Mount (Shear Type / 70 - 171LBS / 5/8" Stud)
Part No: 207041
R&D flexible engine mountings have been designed and engineered for the rigours of marine engines.
The flexible engine mount has added features of being fail-safe, working within controlled limits and able to withstand a roll-over test. The mount is soft vertically and at right angles to the crankshaft to isolate vibrations, as well as being able to cope with propeller thrust. It is a low height mounting to absorb vibrations better.
Maximum clearance between the underside of the height adjusting nut and top washer must not be more than 10mm. If more height is required use a spacer under the mounting casting.
Application
1, 2 & 3 Cylinder Short Stroke High Speed Engines
Height Description
116mm (4.57"), Base: 41.69mm (1.64")
Length
Base: 127mm (5")
Maximum Load Description
32kg to 78kg (70lbs to 171lbs)
Width
Base: 55.37mm (2.18")
Brand
R&D Marine
Hole Centres
101.6mm (4")
Suitable For
1, 2 & 3 Cylinder Short Stroke High Speed Engines
Country of Origin
United Kingdom
Engine Mount
Shear Small Engine Mounts
Deflection
1.8mm to 3.4mm (0.07" to 0.14")
Dimensions
Height Adjusting Nut Thickness: 14mm (0.55")
Mount Pre loaded
1.8mm (0.07")
Stud Size
5/8" UNF
Share
View full details
R&D Flexible Engine Mount (Shear Type / 70 - 171LBS / 5/8" Stud)
Part No: 207041
R&D flexible engine mountings have been designed and engineered for the rigours of marine engines.
The flexible engine mount has added features of being fail-safe, working within controlled limits and able to withstand a roll-over test. The mount is soft vertically and at right angles to the crankshaft to isolate vibrations, as well as being able to cope with propeller thrust. It is a low height mounting to absorb vibrations better.
Maximum clearance between the underside of the height adjusting nut and top washer must not be more than 10mm. If more height is required use a spacer under the mounting casting.
| Application | 1, 2 & 3 Cylinder Short Stroke High Speed Engines |
| Height Description | 116mm (4.57"), Base: 41.69mm (1.64") |
| Length | Base: 127mm (5") |
| Maximum Load Description | 32kg to 78kg (70lbs to 171lbs) |
| Width | Base: 55.37mm (2.18") |
| Brand | R&D Marine |
| Hole Centres | 101.6mm (4") |
| Suitable For | 1, 2 & 3 Cylinder Short Stroke High Speed Engines |
| Country of Origin | United Kingdom |
| Engine Mount | Shear Small Engine Mounts |
| Deflection | 1.8mm to 3.4mm (0.07" to 0.14") |
| Dimensions | Height Adjusting Nut Thickness: 14mm (0.55") |
| Mount Pre loaded | 1.8mm (0.07") |
| Stud Size | 5/8" UNF |
