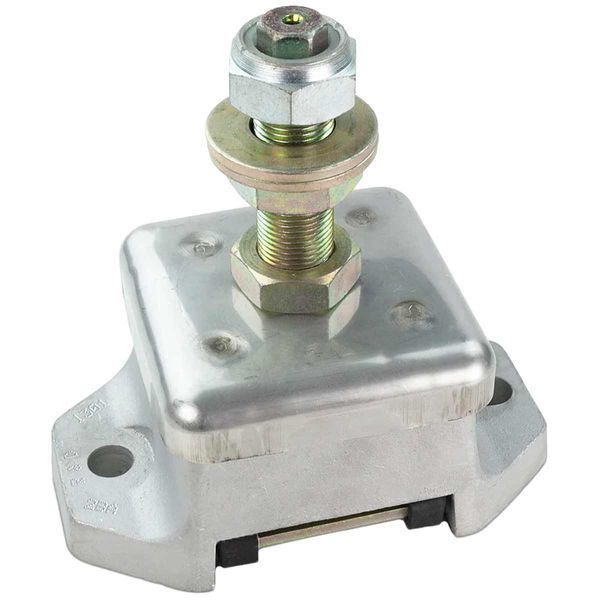

R&D Flexible Engine Mount (Shear Type / 1100 - 2101LBS / 1" Stud)
Part No: 207068
R&D flexible engine mountings have been designed and engineered for the rigours of marine engines.
The flexible engine mount has added features of being fail-safe, working within controlled limits and able to withstand a roll-over test. The mount is soft vertically and at right angles to the crankshaft to isolate vibrations, as well as being able to cope with propeller thrust. It is fitted with an oil shield which is designed to protect the rubber.
Maximum clearance between the underside of the height adjusting nut and top washer must not be more than 10mm. If more height is required use a spacer under the mounting casting.
Height Description
181.93mm (7.16"), Base: 84.79mm (3.34")
Length
Base: 177.8mm (7")
Maximum Load Description
500kg to 955kg (1100lbs to 2101lbs)
Width
Base: 110mm (4.33")
Brand
R&D Marine
Hole Centres
139.7mm (5.5")
Country of Origin
United Kingdom
Engine Mount
Shear Super High Capacity Engine Mounts
Deflection
3mm to 6.4mm (0.12" to 0.25")
Dimensions
Height Adjusting Double Nut & Washer Thickness: 31.75mm (1.25")
Mount Pre loaded
3mm (0.12")
Stud Size
1" UNF
Share
View full details
R&D Flexible Engine Mount (Shear Type / 1100 - 2101LBS / 1" Stud)
Part No: 207068
R&D flexible engine mountings have been designed and engineered for the rigours of marine engines.
The flexible engine mount has added features of being fail-safe, working within controlled limits and able to withstand a roll-over test. The mount is soft vertically and at right angles to the crankshaft to isolate vibrations, as well as being able to cope with propeller thrust. It is fitted with an oil shield which is designed to protect the rubber.
Maximum clearance between the underside of the height adjusting nut and top washer must not be more than 10mm. If more height is required use a spacer under the mounting casting.
| Height Description | 181.93mm (7.16"), Base: 84.79mm (3.34") |
| Length | Base: 177.8mm (7") |
| Maximum Load Description | 500kg to 955kg (1100lbs to 2101lbs) |
| Width | Base: 110mm (4.33") |
| Brand | R&D Marine |
| Hole Centres | 139.7mm (5.5") |
| Country of Origin | United Kingdom |
| Engine Mount | Shear Super High Capacity Engine Mounts |
| Deflection | 3mm to 6.4mm (0.12" to 0.25") |
| Dimensions | Height Adjusting Double Nut & Washer Thickness: 31.75mm (1.25") |
| Mount Pre loaded | 3mm (0.12") |
| Stud Size | 1" UNF |
