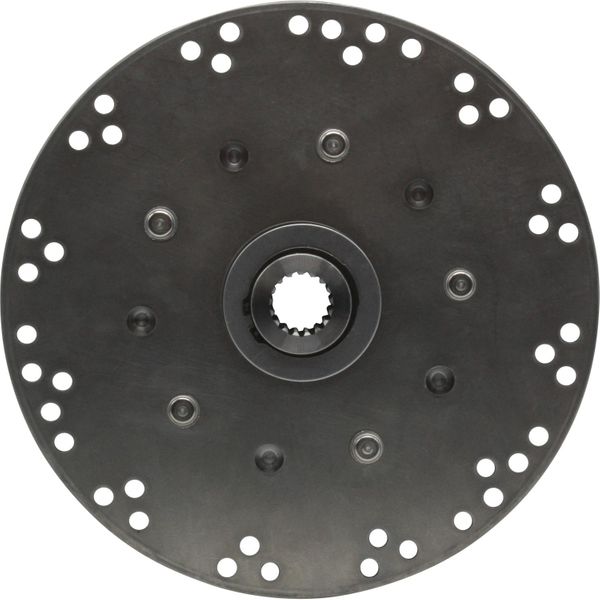

R&D Drive Plate for PRM Gearboxes (17 Teeth Spline, 266.7mm OD)

Part No: RND-18E36

18E36 Marine Engine Damper Drive Plate from R&D Marine.

Fitted between the boat engine and the gearbox input shaft, a damper drive plate is designed to transmit the engine power to the gearbox, whilst reducing transmitted gear noise and providing a cushioned drive when selecting gear. All R and D Damper Drive plates include a 'failsafe' design.

Also called the Driven Plate, Damper Plate or Clutch Plate, the 18E36 Damper Drive Plate is from the R and D Loop element range. This drive plate is suitable for the PRM 301, PRM 302, PRM 401, PRM 402, PRM 500 and the PRM 750.

Technical Specifications:

- Spline: 17 Teeth 16/32 DP

- Fitted with a Loop element for 245 Nm 180 lb ft torque.

Flywheel Fixing Metric:

12 x 8.1 on 222.3

6 x 8.1 on 244.5

Spaced 3 groups of 2 apart 23°59`07

12 x 8.1 on 246

12 x 8.1 on 242
