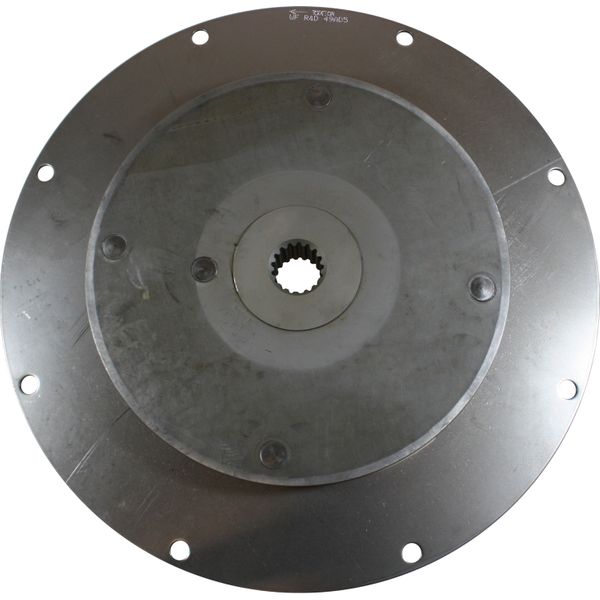

R&D Drive Plate For PRM 500 (17 Teeth Spline / 352.5mm Diameter)

Part No: RND-49AD5

49AD5 R & D Marine Damper Drive Plate.

Fitted between the engine and the gearbox input shaft, a damper drive plate is designed to transmit the engine power to the gearbox, whilst reducing transmitted gear noise and providing a cushioned drive when selecting gear. All R and D Damper Drive plates include a 'failsafe' design.

Also called the Driven Plate, Damper Plate or Clutch Plate, this Damper Drive Plate is from the R and D range. Common applications for this drive plate include SAE 11.5 flywheels mated to PRM301, PRM302, PRM401, PRM402, PRM500 & PRM750 gearboxes.

The technical details:

- Spline: 17 teeth 16/32 DP (28.84mm diameter) for PRM 301 & 302, PRM 401 & 402 and PRM 500 & 750 gearboxes

- Diameter of the back plate which bolts to the engine flywheel: 352.5mm (13.875")

- Back plate fixing holes: 8 x 10.6mm on 333.375mm (13.125") pcd SAE11 1/2

- Maximum thickness of drive plate: 36mm (1.41")

Fitted with the softer type AD high deflection element for 670Nm 500 ft lb torque, providing a maximum deflection up to 30 degrees. This type of plate is especially suited to workboats with slow speed applications & pleasure boats. Note that this type of damper drive plate can only be fitted to rotate in the standard direction of rotation (anti-clockwise when looking at the flywheel) with the element facing the gearbox. The 49AD5 damper plates are also failsafe.

If you are unsure or need any assistance choosing your drive plate please contact our customer support department who will help you find the right parts for your application.
