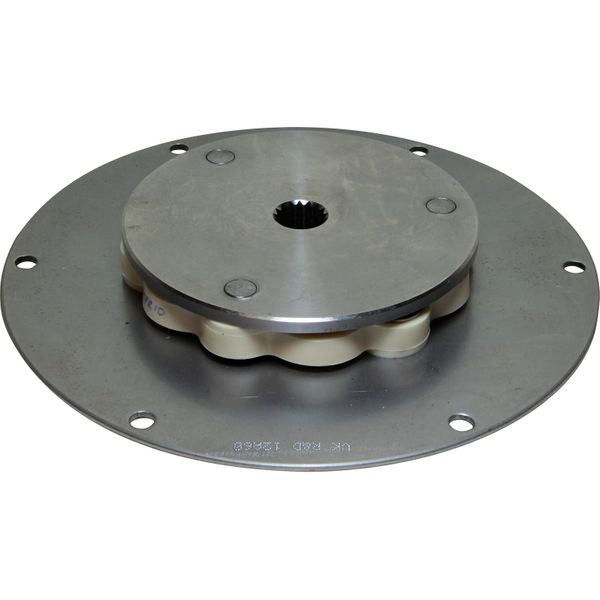

R&D Drive Plate For PRM (17 Teeth Spline, 8.5" 215.9mm Diameter)

Part No: RND-12A60

12A60 Marine Engine Damper Drive Plate from R&D Marine

Fitted between the boat engine and the gearbox input shaft, a damper drive plate is designed to transmit the engine power to the gearbox, whilst reducing transmitted gear noise and providing a cushioned drive when selecting gear. All R and D Damper Drive plates include a 'failsafe' design.

Also called the Driven Plate, Damper Plate or Clutch Plate, the 12A60 Damper Drive Plate is from the R and D Loop element range. Common applications for the RND-12A60 drive plate include Beta Marine engines with SAE6½ flywheels and PRM Delta gearboxes.

R&D 12A60 drive plate technical details:

- Spline: 17 teeth 24/48DP (19.7mm diameter) for Newage PRM Delta gearbox.

- Diameter of drive plate back plate which bolts to the engine flywheel: SAE 6-1/2 215.9mm 8.5"

- Back plate fixing holes: The back plate has 6 x 8.1mm holes (0.32") on 200mm PCD (7.875") for SAE6.5 flywheels such as fitted to some small Beta Marine engines

- Drive plate maximum thickness: 32mm (1.25")

Fitted with a type A loop element for 80Nm 60 lb ft torque, which can be mounted either round on the flywheel and rotated in either direction. This drive plate element will provide linear stiffness up to 3 degrees of deflection and is failsafe.

If you are unsure or need any assistance choosing your drive plate please contact our customer support department who will help you find the right parts for your application.
