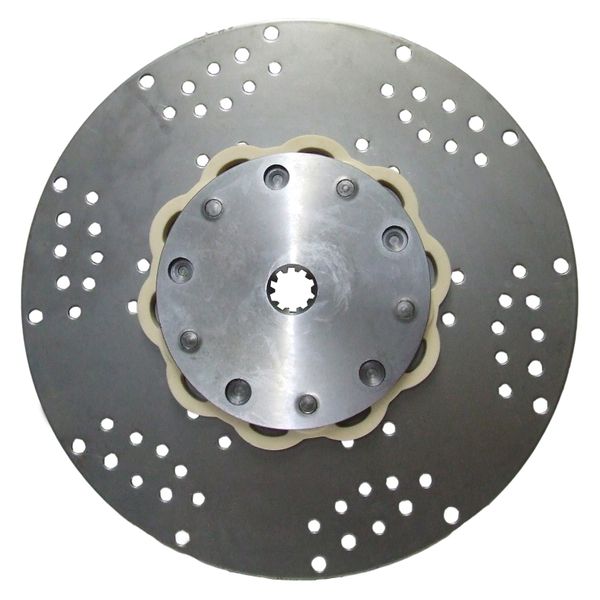

R&D Drive Plate For PRM (10 Teeth Spline, 362mm OD, 400 lb ft Torque)

Part No: RND-16M2

16M2 Boat Engine Damper Drive Plate from R&D Marine

Fitted between the marine engine and the gearbox input shaft, a damper drive plate is designed to transmit the engine power to the gearbox, whilst reducing transmitted gear noise and providing a cushioned drive when selecting gear. All R and D Damper Drive plates include a 'failsafe' design.

Also called the Driven Plate, Damper Plate or Clutch Plate, the 16M2 Damper Drive Plate is from the R and D Loop element range. Common applications for the 16M2 drive plate include Ford and Perkins marine engines with PRM gearboxes. Replaces PRM drive plate MT1087.

R&D Marine clutch plate 16M2 technical details:

- Spline: 10 teeth SAE 1 1/8" x 10T (28.6mm diameter) for PRM 175, PRM 250, PRM 265 and PRM 310 gearboxes.

- Diameter of drive plate back plate which bolts to the engine flywheel: 362mm (14.25")

- Back plate fixing holes: Multi hole back plate offering 6 x 8.1mm on 200mm PCD, 6 x 8.1mm on 210mm PCD, 6 x 8.1mm on 263mm PCD, 6 x 8.1mm on 269.9mm PCD, 6 x 8.1mm on 276.3mm PCD, 6 x 8.1mm on 289mm PCD, 6 x 8.1mm on 295.3mm PCD, 6 x 8.8mm on 304.8mm PCD, 6 x 8.1mm on 314.4mm PCD, 6 x 9.5mm on 320.7mm PCD and 12 x 9.5mm on 343mm PCD (Ford)

- Drive plate maximum thickness: 35mm (1.38")

Fitted with a type M loop element for 540 Nm 400 ft lb torque, the 16M2 drive plate can be mounted either round on the flywheel and rotated in either direction. This drive plate element will provide linear stiffness up to 3 degrees of deflection and is failsafe.

If you are unsure or need any assistance choosing your drive plate please contact our customer support department who will help you find the right parts for your application.
