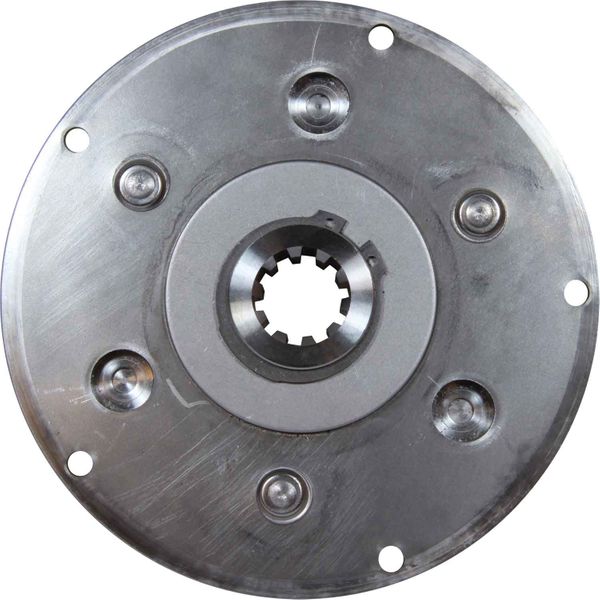

R&D Drive Plate For PRM (10 Teeth Spline, 155.45mm OD, 100 lb ft)

Part No: RND-13B4

13B4 Marine Engine Damper Drive Plate from R&D Marine

Fitted between the boat engine and the gearbox input shaft, a damper drive plate is designed to transmit the engine power to the gearbox, whilst reducing transmitted gear noise and providing a cushioned drive when selecting gear. All R and D Damper Drive plates include a 'failsafe' design.

Also called the Driven Plate, Damper Plate or Clutch Plate, the 13B4 Damper Drive Plate is from the R and D Loop element range. Common applications for the 13B4 drive plate include BMC, Ford and Perkins engines which have a flywheel with the 6.125" diameter fixings aperture.

The technical details:

Spline: 10 teeth SAE 1" 10T (25.4mm diameter) for PRM 100, 101, 140, 160 and 260 Gearboxes.

Diameter of drive plate back plate which bolts to the engine flywheel: 155.45 mm 6.125"

Back plate fixing holes: The small back plate has 5 x 6.35mm holes (0.25") on 142mm PCD (5.593). This was a very common fixing arrangement for BMC, Leyland, Thornycroft and Perkins engines

Drive plate maximum thickness: 32mm (1.25")

Fitted with a type B loop element for 135Nm 100 ft lb torque, which can be mounted either round on the flywheel and rotated in either direction. This drive plate element will provide linear stiffness up to 3 degrees of deflection and is failsafe.

Replaces PRM drive plate MT1608.

If you are unsure or need any assistance choosing your drive plate please contact our customer support department who will help you find the right parts for your application.
