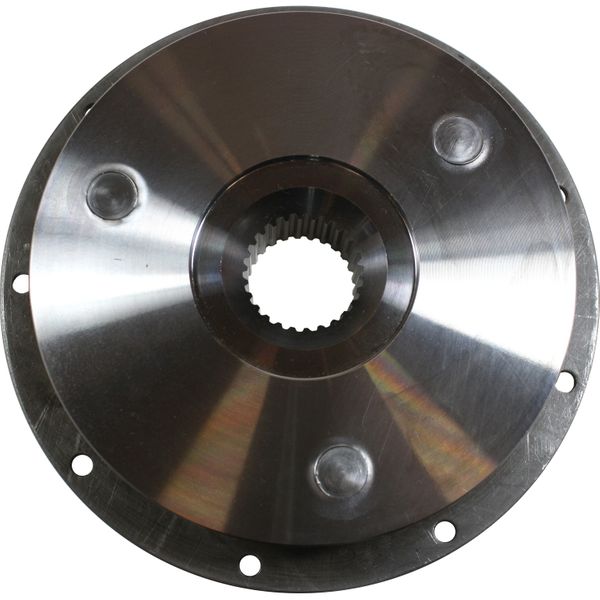

R&D Drive Plate For Borgwarner (26 Teeth Spline, 180.8mm OD, 300 lbft)

Part No: RND-7J7

7J7 Borgwarner Replacement Gearbox to Engine Damper Drive Plate from R&D Marine.

Fitted between the marine engine and the gearbox input shaft, a damper drive plate is designed to transmit the engine power to the gearbox, whilst reducing transmitted gear noise and providing a cushioned drive when selecting gear. All R and D Damper Drive plates include a 'failsafe' design.

Also called the Driven Plate, Damper Plate or Clutch Plate, the 7J7 Damper Drive Plate is from the R and D Loop element range. The 7J7 drive plate is designed as a replacement for Velvet Drive Borgwarner plate 10.04.650.404 ( 10-04-650-404 ) AS7-K1C and AS14-K1C.

The technical details:

- Spline: 26 teeth 20/40 DP (35.4mm diameter) for Borgwarner 70, 71, 72 & 73 gearboxes, PRM Inline gearboxes, Paragon P series, Technodrive TN90, 170, 260, 345, 485, 545 & 880 gearboxes, TMP 1200 & 1500, Twin Disc 501 & 502 gearboxes, some Volvo saildrives, ZF IRM220A & Hurth HBW 250 and HSW gearboxes.

- Diameter of drive plate back plate which bolts to the engine flywheel: 180.8mm (7.12")

- Back plate fixing holes: One single row of fixing holes, 9 x 6.35mm on 167.4mm PCD

- Maximum thickness of drive plate: 36mm (1.41")

Fitted with a robust J loop element for 405 Nm 300 ft lb torque, the 7J7 drive plate can be mounted either round on the flywheel and rotated in either direction. This drive plate element will provide linear stiffness up to 3 degrees of deflection and is failsafe.

If you are unsure or need any assistance choosing your drive plate please contact our customer support department who will help you find the right parts for your application.
