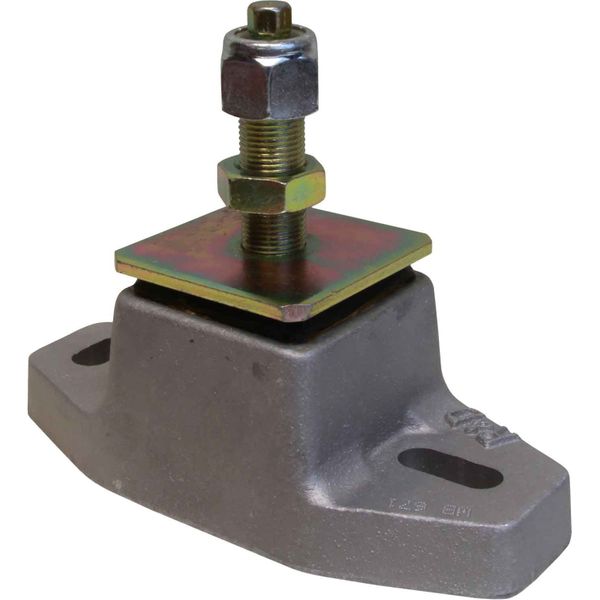

R&D Double Acting Shear Loaded Engine Mount (160-671LBS / 3/4" Stud)
R&D Double Acting Shear Loaded Engine Mount (160-671LBS / 3/4" Stud)
Regular price
£206.52 GBP
Regular price
£172.10 GBP
Sale price
£206.52 GBP
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Limited Stock - Call 01484 482269
R&D Double Acting Shear Loaded Engine Mount (160-671LBS / 3/4" Stud)
Part No: 207042
The double acting shear engine mount is a unique mounting incorporating two rubber elements which are pre-loaded against each other, giving excellent isolation together with good control on problem installations. This flexible engine mount is suitable for a maximum load of 73kg to 305kg (160lbs to 671lbs).
The dimensions of the double acting shear loaded flexible engine mount are shown in the drawing located below the main image, click the image to and hold your mouse over the image view the full size drawing.
Application
2 & 3 Cylinder Long Stroke Engines
Height Description
153mm (6.0"), Base: 75mm (2.96")
Length
Base: 181mm (7.12")
Maximum Load Description
73kg to 305kg (160lbs to 671lbs)
Width
Base: 80mm (3.16")
Brand
R&D Marine
Hole Centres
101.6mm / 139.7mm (4" / 5.5")
Suitable For
2 & 3 Cylinder Long Stroke Engines
Country of Origin
United Kingdom
Engine Mount
Double Acting Engine Mounts
Deflection
4.8mm to 7.6mm (0.19" to 0.30")
Dimensions
Height Adjusting Nut Thickness: 11mm (0.43")
Mount Pre loaded
4.8mm (0.19")
Stud Size
3/4" UNF
Share
View full details
R&D Double Acting Shear Loaded Engine Mount (160-671LBS / 3/4" Stud)
Part No: 207042
The double acting shear engine mount is a unique mounting incorporating two rubber elements which are pre-loaded against each other, giving excellent isolation together with good control on problem installations. This flexible engine mount is suitable for a maximum load of 73kg to 305kg (160lbs to 671lbs).
The dimensions of the double acting shear loaded flexible engine mount are shown in the drawing located below the main image, click the image to and hold your mouse over the image view the full size drawing.
| Application | 2 & 3 Cylinder Long Stroke Engines |
| Height Description | 153mm (6.0"), Base: 75mm (2.96") |
| Length | Base: 181mm (7.12") |
| Maximum Load Description | 73kg to 305kg (160lbs to 671lbs) |
| Width | Base: 80mm (3.16") |
| Brand | R&D Marine |
| Hole Centres | 101.6mm / 139.7mm (4" / 5.5") |
| Suitable For | 2 & 3 Cylinder Long Stroke Engines |
| Country of Origin | United Kingdom |
| Engine Mount | Double Acting Engine Mounts |
| Deflection | 4.8mm to 7.6mm (0.19" to 0.30") |
| Dimensions | Height Adjusting Nut Thickness: 11mm (0.43") |
| Mount Pre loaded | 4.8mm (0.19") |
| Stud Size | 3/4" UNF |
