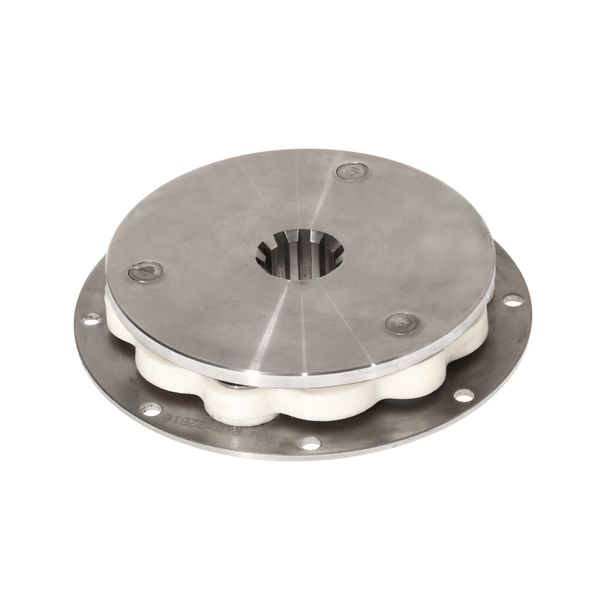

R&D 22B16 Drive Plate For Hurth & PRM (10 Teeth Spline / 151mm OD)
R&D 22B16 Drive Plate For Hurth & PRM (10 Teeth Spline / 151mm OD)
Limited Stock - Call 01484 482269
R&D 22B16 Drive Plate For Hurth & PRM (10 Teeth Spline / 151mm OD)
Part No: RND-22B16
R&D 22B16 loop type drive plate for Hurth HBW and PRM 150 Gearboxes.
The damper drive plate fits between the flywheel to the gearbox to drive the gearbox shaft. Also known as the drive plate, clutch plate, spring plate or gearbox plate. Typical applications for the 22B16 damper drive plate include Hurth HBW gearboxes such as HBW35, HBW50, HBW100 & HBW150, ZF gearboxes such as the ZF10 & ZF12. It also fits the PRM gearbox spline of the PRM80, PRM120 & PRM150 gearboxes, Borgwarner 500 gearbox and TMC 30, 40, 50 & 60 gearboxes.
22B16 Drive plate technical details:
- Overall diameter of drive plate back plate: 151mm (5.94")
- 10 teeth spline B10 x 23 x 29 DIN5464 (29.0mm diameter)
- Bolt hole details: 8 x 6.00mm (0.24") holes on 140.0mm (5.51") PCD
If you are unsure or need any assistance choosing your drive plate please contact our customer support department who will help you find the right parts for your application.
Application
Hurth HBW Gearboxes: HBW 35, HBW 50, HBW 100 & HBW 150, ZF Gearboxes: ZF10 & ZF12, PRM Gearboxes: 80, 120 & 150, Borgwarner 500 Gearbox, TMC 30, 40, 50 & 60 Gearboxes
Type
10 Tooth Plates
Brand
R&D Marine
Element
Loop
Bolt Hole PCD Description
8 x 6.00mm (0.24") Holes on 140.0mm (5.51") PCD
Diameter Description
OD: 151mm (5.94")
Gearbox Spline
10 Teeth Spline B10 x 23 x 29 DIN5464 (29mm diameter)
Number of Fixing Holes
8
Replaces
DF254762
Share
View full details
R&D 22B16 Drive Plate For Hurth & PRM (10 Teeth Spline / 151mm OD)
Part No: RND-22B16
R&D 22B16 loop type drive plate for Hurth HBW and PRM 150 Gearboxes.
The damper drive plate fits between the flywheel to the gearbox to drive the gearbox shaft. Also known as the drive plate, clutch plate, spring plate or gearbox plate. Typical applications for the 22B16 damper drive plate include Hurth HBW gearboxes such as HBW35, HBW50, HBW100 & HBW150, ZF gearboxes such as the ZF10 & ZF12. It also fits the PRM gearbox spline of the PRM80, PRM120 & PRM150 gearboxes, Borgwarner 500 gearbox and TMC 30, 40, 50 & 60 gearboxes.
22B16 Drive plate technical details:
- Overall diameter of drive plate back plate: 151mm (5.94")
- 10 teeth spline B10 x 23 x 29 DIN5464 (29.0mm diameter)
- Bolt hole details: 8 x 6.00mm (0.24") holes on 140.0mm (5.51") PCD
If you are unsure or need any assistance choosing your drive plate please contact our customer support department who will help you find the right parts for your application.
| Application | Hurth HBW Gearboxes: HBW 35, HBW 50, HBW 100 & HBW 150, ZF Gearboxes: ZF10 & ZF12, PRM Gearboxes: 80, 120 & 150, Borgwarner 500 Gearbox, TMC 30, 40, 50 & 60 Gearboxes |
| Type | 10 Tooth Plates |
| Brand | R&D Marine |
| Element | Loop |
| Bolt Hole PCD Description | 8 x 6.00mm (0.24") Holes on 140.0mm (5.51") PCD |
| Diameter Description | OD: 151mm (5.94") |
| Gearbox Spline | 10 Teeth Spline B10 x 23 x 29 DIN5464 (29mm diameter) |
| Number of Fixing Holes | 8 |
| Replaces | DF254762 |
